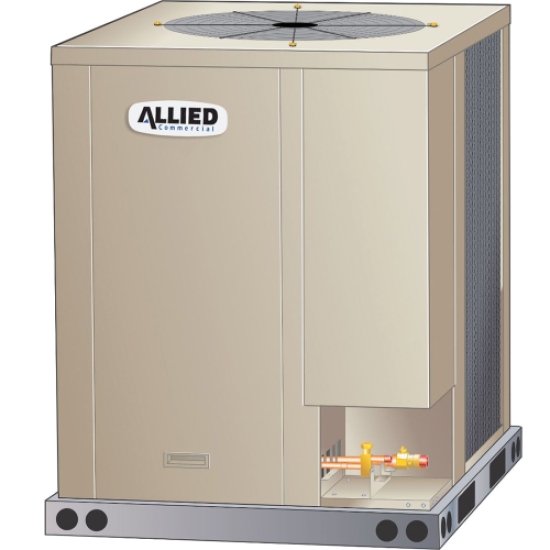

Allied Commercial™ ELS120S4ST1Y
Allied Commercial™ ELS120S4ST1Y| 10 Ton Cooling | 11.2 EER | 14.3 IEER | Outdoor Split System Air Conditioner
Manufacturer: Allied Air Enterprises
Brand: Allied Commercial™
Part #: 394050
MPN: ELS120S4ST1Y
UPC: 662551518412
CPN:
Min. Order Qty: 1
Qty Order Interval: 1
| Control Type | : | TXV |
| Cooling Capacity | : | 115000 Btu/hr |
| Dimensions | : | 60 in L x 42 in W x 50 in H |
| Discharge Line Size | : | 5/8 in |
| EER Rating | : | 11.2 |
| Flow Rate | : | 8300 cfm |
| IEER Rating | : | 14.3 |
| Material | : | Steel |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Condenser Fan |
| Mounting Type | : | Surface |
| Nominal Capacity | : | 120000 Btu/hr |
| Number of Speeds | : | 2 |
| Power Source | : | 208/230 VAC, 47 A, 3 ph, 60 Hz |
| Refrigerant Type | : | R-410A |
| Series | : | T-Series™ ELS |
| Sound Level | : | 86 dB |
| Suction Line Size | : | 1-1/8 in |
The T-Series™ is the largest Allied Commercial™ split system, with sizes up to 20 tons. Advanced technology like 1-zone VAV saves you energy and money.
Allied Commercial™ Split System Air Conditioner, Series: T-Series™ ELS, 120000 Btu/hr Nominal, 115000 Btu/hr Cooling, 11.2 EER, 14.3 IEER, 208/230 VAC, 47 A, 3 ph, 60 Hz Power Source, 8300 cfm, TXV Control, R-410A Refrigerant, 2 Speed, 86 dB Sound Level, 1-1/8 in Suction Line, 5/8 in Discharge Line, Condenser Fan Motor, 1/3 hp Motor, 1075 rpm, Surface Mounting, Steel, 60 in L x 42 in W x 50 in H Dimensions
- Proven scroll compressors for smooth operation
- Easy-access panels for convenient maintenance and service
- Single refrigeration circuit
- 1-zone VAV (variable air volume) supply fan technology
- Up to 61% power savings over comparable units
- 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
- Part load, IEER improvement at 67% airflow when compared to full load
- 2-stage compressor
- Standard cooling efficiency
