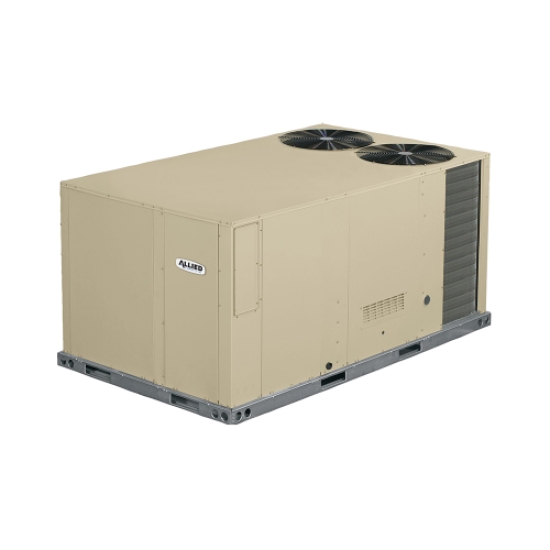

Allied Commercial™ KCB048S4BN
Allied Commercial™ K-Series™ | 4 Ton Cooling | 208/230 V | 3 phase | Rooftop Packaged Electric Cooling Unit With Optional Electric Heat
Manufacturer: Allied Air Enterprises
Brand: Allied Commercial™
Part #: 401472
MPN: KCB048S4BN
UPC: 662551504682
CPN:
Min. Order Qty: 1
Qty Order Interval: 1
| Compressor Type | : | Scroll |
| Cooling Capacity | : | 4 ton |
| Dimensions | : | 47 in W x 85-1/4 in D x 38-7/8 in H |
| EER Rating | : | 11.5 |
| Flow Rate | : | 1600 cfm |
| Fuse Size | : | 30 A |
| IEER Rating | : | 14.5 |
| Material | : | Steel |
| Motor HP | : | 1/3 hp Condenser, 3/4, 1-1/2 hp Blower |
| Motor RPM | : | 825 rpm Condenser |
| Motor Type | : | Direct Drive Blower |
| Number of Speeds | : | 1 |
| Power Source | : | 208/230 VAC, 4.1 kW, 3 ph,60 Hz |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | K-Series™ |
| Type | : | Rooftop |
Allied Commercial™ Packaged Electric Cooling Unit, Rooftop, Series: K-Series™, 4 ton Cooling, 11.5 EER, 14 SEER, 14.5 IEER, Scroll Compressor, 208/230 VAC, 4.1 kW, 3 ph,60 Hz Power Source, 30 A Fuse, 1600 cfm, R-410A Refrigerant, 1 Speed, Direct Drive Blower Motor, 1/3 hp Condenser, 3/4, 1-1/2 hp Blower Motor, 825 rpm Condenser, Steel, 47 in W x 85-1/4 in D x 38-7/8 in H Dimensions
- Single-Zone VAV (Variable Air Volume) supply fan technology
- Up to 61% power savings over comparable units
- 29% better moisture removal for humidity control when compared to systems with conventional supply fan motors
- Eco-Last™ Coil System uses up to 52% less refrigerant, is up to 59% lighter, and has up to 20% fewer brazed joints than regular rooftop unit coils (standard on KC and KG models)
- Isolated compressor for quieter operation and easier service
- Easy-to-reach gas compartment for quick, simplified diagnostics and serviceability
- More than 100 field-selectable options ensure fast and easy installation
- High-pressure switch guards the compressor from extreme operating conditions
- 2nd generation major design sequence
- Standard cooling efficiency
- Belt drive blower
- (1) 10 in Dia x 10 in W blower wheel
- (4) 16 x 20 x 2 in disposable filter
- 20 A minimum circuit
