| Collection | : | GlenWall™ |
| Depth | : | 9 in |
| Domestic/Import | : | Domestic |
| Finish/Color | : | White |
| Flush Handle | : | Trip Lever |
| Flush Valve Size | : | 2 in |
| Gallons Per Flush | : | 1.6 gpf |
| Height | : | 15-1/2 in |
| Material | : | Vitreous China |
| Mounting Type | : | Wall |
| Rough-In Size | : | 12 in |
| Width | : | 19-1/2 in |

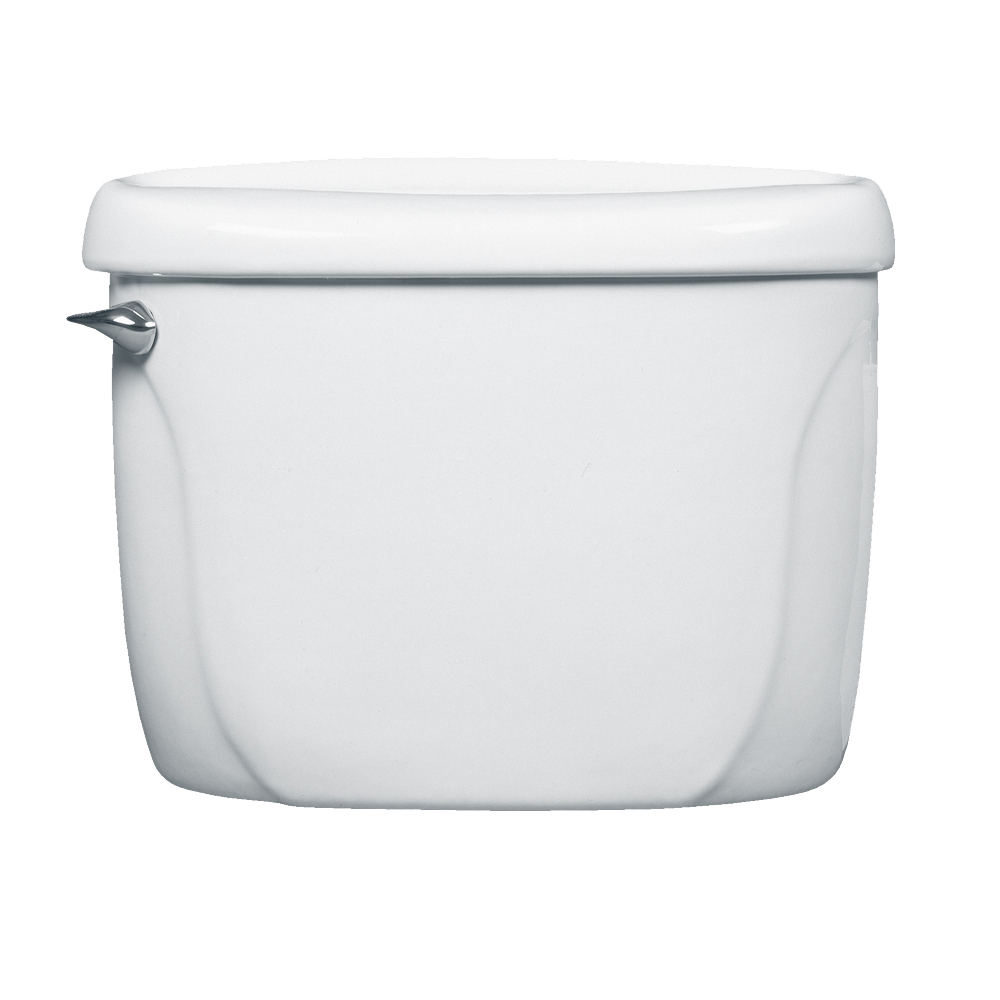

American Standard Toilet Tank, Collection: GlenWall™, 1.6 gpf Gallons Per Flush, Trip Lever Flush, 2 in Flush Valve, 12 in Rough-In, Wall Mount, 15-1/2 in Height, 19-1/2 in Width, 9 in Depth, Vitreous China, White, Domestic
- Close-coupled flushometer tank
- With coupling component and without seat
- Note: waste outlet seal ring must be neoprene or graphite felt (wax ring not recommended) suggest 1/16 in clearance between face at wall and back of bowl
- Carrier fitting as required to be figured and furnished by others
- Provide suitable reinforcement for all supports
- Supply not included with fixture and must be ordered separately
- Note: dimension shown for location of supply is suggested
- For additional information refer to installation instructions supplied
