| Body Material | : | Bronze |
| Dimensions | : | 3.27 in H |
| Domestic/Import | : | Domestic |
| End Style | : | MNPT x FNPT |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 15 psig Set |
| Series | : | 13-200 |
| Softgoods Material | : | TFE Seat |
| Temperature Rating | : | 250 deg F |
| Trim Material | : | Brass Stem |
| Type | : | Low Pressure |
| Warranty | : | 5 Years |

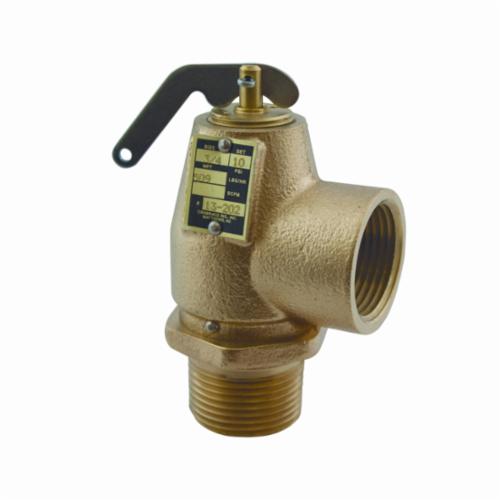

The Apollo® 13 Series bronze low pressure steam safety valve is designed to meet ASME Section IV code requirements for protection of steam heating boilers, systems and similar equipment.
Apollo™ Safety Relief Valve, Low Pressure, Series: 13-200, 3/4 in Nominal Size, MNPT x FNPT, 15 psig Set, 250 deg F, Bronze Body, Brass Stem Trim, TFE Seat, 3.27 in H, Domestic
- EPDM disc for positive seal
- Standard set pressure of 15 psi, capacities apply to valves set at 15 psi
- Stainless steel spring
- Corrosion resistant construction
- Compact design top outlet design option
- 475 lb/hr capacity
