| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 3.34 in |
| Media | : | Water |
| Nominal Size | : | 1 in |
| Port Type | : | Standard |
| Pressure Rating | : | 2000 psig CWP |
| Series | : | 76-100 |
| Softgoods Material | : | MPTFE Stem Packing/RPTFE Seat/PTFE Body Seal |
| Top to Inlet Center | : | 2.16 in |
| Trim Material | : | 316 Stainless Steel Stem |
| Warranty | : | 5 Years |

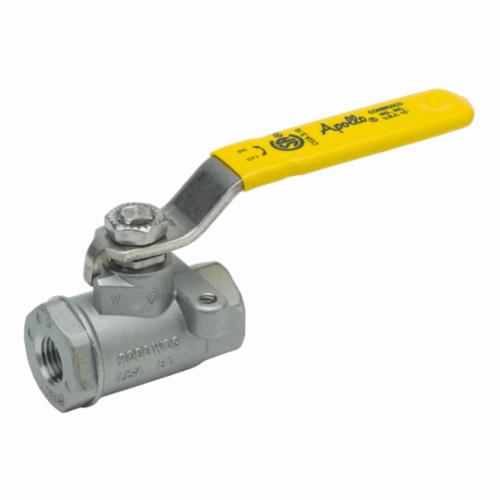

Apollo™ 2-Piece Ball Valve, Series: 76-100, 1 in Nominal, FNPT, 2000 psig CWP Pressure Rating, Standard Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 2.16 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem Trim, Softgoods Material: MPTFE Stem Packing/RPTFE Seat/PTFE Body Seal, Domestic
- Investment cast components
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
- Vacuum service to 29 in Hg
- 304 stainless steel with vinyl lever and grip
- ASTM A351-CF8M stainless steel or A276-316 stainless steel retainer
- ASTM A276-316 stainless steel gland nut
- 18-8 stainless steel lever nut
- PTFE body seal
- Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
- Note: lead free the wetted surfaces of this product shall contain no more than 0.25 percent lead by weighted average
- 150 psig saturated steam
