| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Wrought Carbon Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Socket Weld |
| Inlet to Outlet Length | : | 2.8 in |
| Nominal Size | : | 1/2 in |
| Port Type | : | Full |
| Pressure Class | : | 600 lb |
| Series | : | 83B-240 |
| Softgoods Material | : | Multi-Seal Seat/Spiral Wound Graphite Seal/Graphite Packing |
| Top to Inlet Center | : | 3.02 in |
| Trim Material | : | 316 Stainless Steel Stem |
| Type | : | 3-Piece |
| Warranty | : | 5 Years |

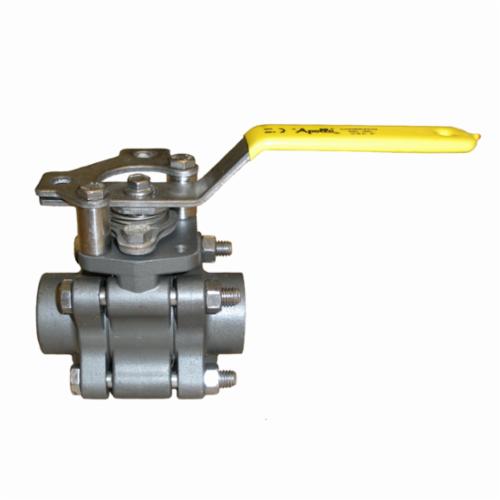

Apollo™ Ball Valve, 3-Piece, Series: 83B-240, 1/2 in Nominal Size, Socket Weld, 600 lb, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Wrought Carbon Steel Body, 316 Stainless Steel Stem Trim, Multi-Seal Seat/Spiral Wound Graphite Seal/Graphite Packing, Domestic
- 3-piece construction with enclosed fasteners
- Stainless steel trim and hardware
- Swing-out center-section
- Pressure balanced solid ball
- Compression controlled spiral wound gasket
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two position locking
- Adjustable multi-piece PTFE V style packing
- Fully machined ISO 5211 mounting
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 250 psig saturated steam
