| Actuator Type | : | Handle |
| Body Material | : | Brass |
| Dimensions | : | 150 psig Pressure Rating |
| Domestic/Import | : | Import |
| End Style | : | SWT |
| Finish | : | Chrome Plated |
| Includes | : | Capscrews and Nuts |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 150 psig |
| Softgoods Material | : | Teflon Packing/Seat Ring |
| Temperature Rating | : | 200 deg F |
| Trim Material | : | Brass Stem |

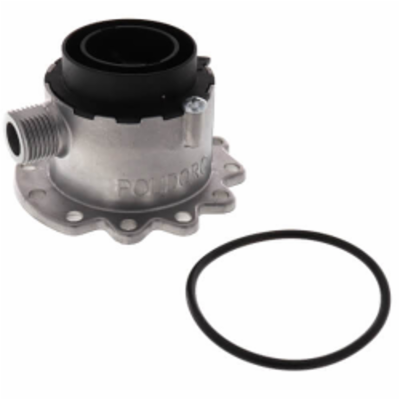

Bell & Gossett Check-Trol ™ Isolation Flow Control Flange, 1 in Nominal Size, SWT, 150 psig, 200 deg F, Handle Actuator, Brass Body, Brass Stem Trim, Teflon Packing/Seat Ring, Chrome Plated, 4-7/16 in Flange, 3 in Inlet to Outlet Length x 2-5/32 in Top to Inlet Center Valve, Import
- Combines three valves in one-isolation valve, check valve and companion flange
- Free floating flange allows easy alignment and installation of pumps
- Prevents gravity circulation
- Isolates the circulator so you don't need to drain the entire system
- 50 state lead free compliant
- Suitable for use with Model NRF/NBF/SSF, Series PL-30, PL-36, PL-55, Series 100, PR, and LR B and G circulators
- Contains less than 0.25% Lead content by weight on wetted surface
- Construction: lead free brass valve body, chrome plated steel flange and lead-free brass ball, nitrile/acetal/stainless steel spring check
