| Dimensions | : | 28-1/4 inch Dia x 71-1/8 inch H |
| Draft Hood Size | : | 6 Inch |
| Fuel Type | : | Natural Gas |
| Gas Connection | : | 3/4 Inch |
| Heating Capacity | : | 199999BtuH |
| Heating Element | : | Magnesium Anode Rod |
| Ignition Type | : | Electronic |
| Material | : | Steel Surface |
| Recovery Rate | : | 139 gph at 140 deg F |
| Tank Capacity | : | 80 gal |
| Temperature Rating | : | 180 deg F |
| Type | : | Commercial, Energy Saver, Heavy Duty |
| Warranty | : | 3 Years Limited on Tank and 1 Year Limited on Parts |
| Water Connection | : | 1-1/2" NPT |

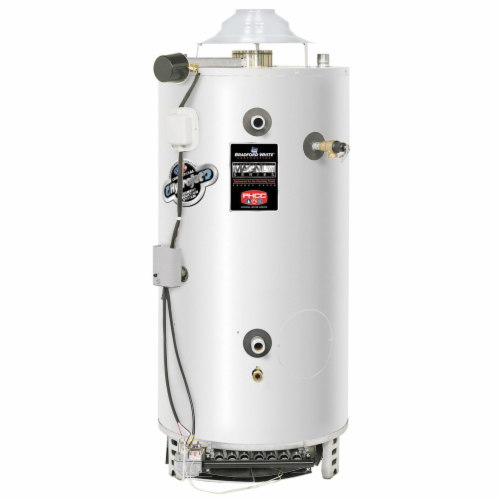

Bradford White® Gas Water Heater, Commercial, Energy Saver, Heavy Duty, 199999 BTU
Heating, Natural Gas, 3/4 Inch Gas Connection, 80 gal Tank, Electronic Ignition, 6 Inch Draft Hood, 139 gph at 140 deg F Recovery, Magnesium Anode Rod Heating Element, 1-1/2 Inch NPT Water Connection, 180 deg F, Steel Surface, 28-1/4 Inch Dia x 71-1/8 Inch H
- ICON HD™ - intelligent proven design combines temperature control, diagnostic codes, and system ignition functions into a single-control board with a digital LCD display, control panel cover tilts down for ease of wiring and service
- Operation mode - two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F (82 deg C) and adjusting the deg setting
- Automatic flue damper - reduces stand-by loss, saving gas consumption and improving overall efficiency
- Factory installed Hydrojet® sediment reduction system - cold water inlet sediment reducing device helps prevent sediment build-up in the tank
- Vitraglas® Lining—Bradford white tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
- Non-CFC foam insulation - covers the sides and top of tank, reducing the amount of heat loss, this results in less energy consumption, improved operation efficiencies and jacket rigidity
- Hand hole cleanout - allows inspection of tank interior and facilitates the removal of sediment deposits
- T&P relief valve installed
- 4 Inch snap-lock draft diverter
