| Body Material | : | Bronze |
| End Style | : | Threaded |

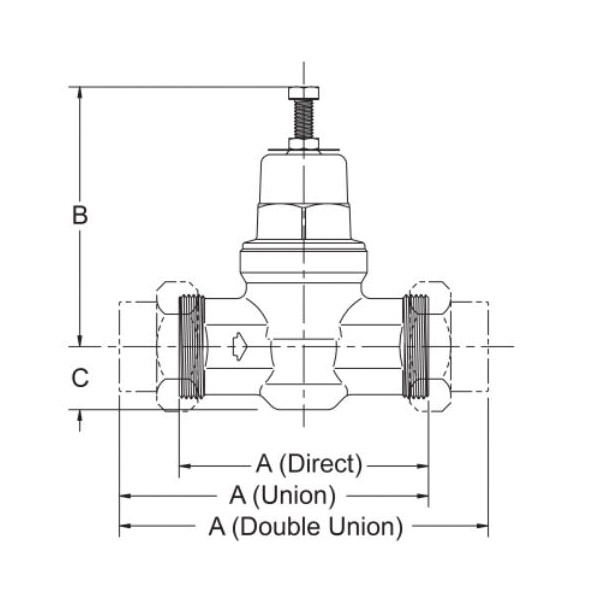

| Inlet to Outlet Length | : | 5-1/2 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 45 psi |
| Series | : | EB45 |
| Softgoods Material | : | Threaded End Style |
| Temperature Rating | : | 180 deg F |
| Top to Inlet Center | : | 4-15/16 in |
| Trim Material | : | Stainless Steel/Brass Piston |
| Type | : | Single-Union |
| Warranty | : | 2 Years Limited |

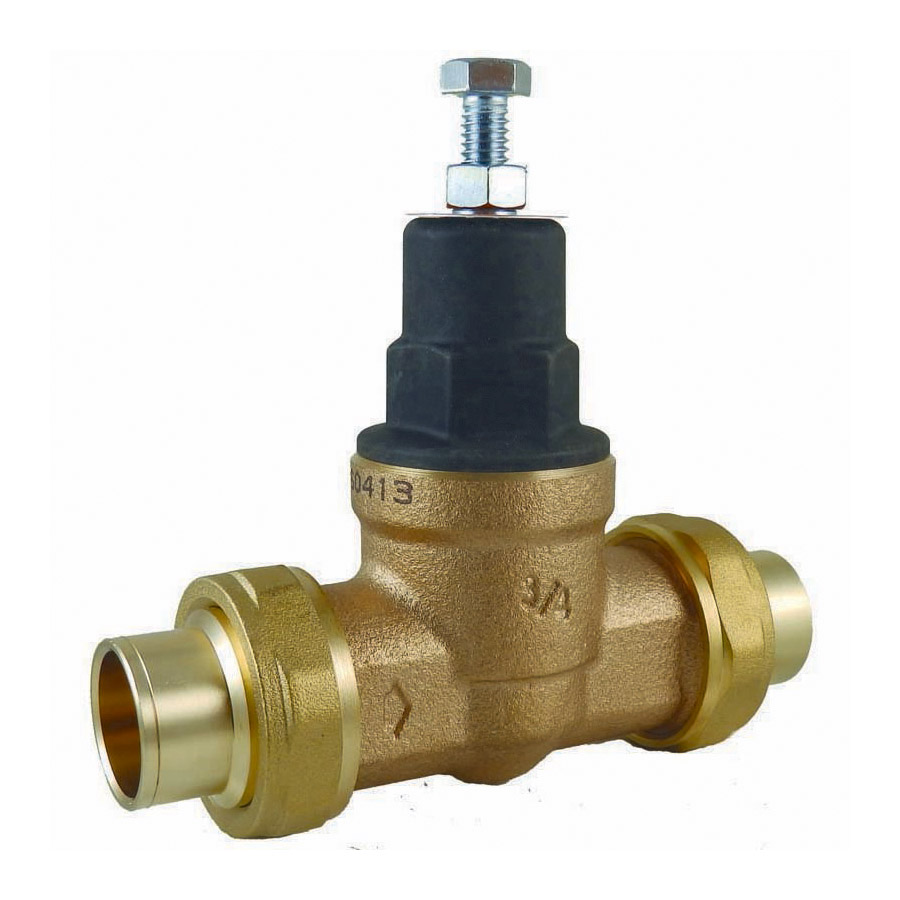

Cash Acme® Pressure Regulating Valve, Single-Union, Series: EB45, 3/4 in Nominal Size, Threaded, 45 psi, 180 deg F, Media: Water, 5-1/2 in Inlet to Outlet Length, 4-15/16 in Top to Inlet Center, Bronze Body, Stainless Steel/Brass Piston Trim, EPDM O-Ring
- Modular cartridge design reduces the number of parts requiring service-quick and easy service and reparability
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing and regulating valves-designed for small and economic considerations
- By-pass mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping - specify and install with confidence
- 400 psi maximum inlet pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm
- Stainless steel strainer screen
