| Center Distance | : | 8 in |
| Commercial/Residential | : | Commercial |
| Connection Size | : | 1/4 in |
| Connection Type | : | NPSM |
| Domestic/Import | : | Domestic |
| Finish/Color | : | Chrome Plated |
| Flow Rate | : | 1.5 gpm |
| Handle Style | : | Lever |
| Material | : | Brass |
| Maximum Deck Thickness | : | 1-3/8 in |
| Mounting Type | : | Deck |
| Number of Faucet Holes | : | 3 |
| Number of Handles | : | 1 |
| Spout Height | : | 6-1/4 in |
| Spout Reach | : | 9 in |
| Spout Type | : | Integral |
| Spray Pattern | : | Non-Aerating |
| Valve/Cartridge Type | : | Ceramic Quarter-Turn |
| Warranty | : | 5 Year Limited Faucet, 5 Year Limited Cartridge, 1 Year Limited Finish |

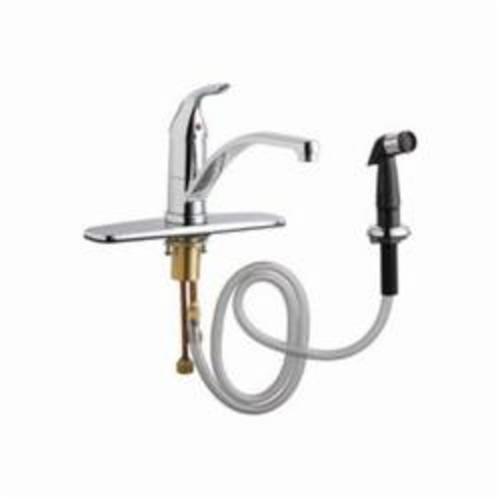

Chicago Faucet® Hot and Cold Water Mixing Sink Faucet, 1.5 gpm, 8 in Center Distance, Integral Spout, 9 in Spout Reach, 6-1/4 in Spout Height, Lever Handle, 1 Handles, 3 Faucet Holes, 1/4 in Connection, NPSM Connection, Spray Pattern: Non-Aerating, 1-3/8 in Maximum Deck Thickness, Deck Mount, Ceramic Quarter-Turn Valve/Cartridge, Brass, Chrome Plated, Domestic, Commercial
- 8 in fixed centers
- 9-1/2 center to center integral cast brass spout
- E37AB: 1.5 gpm (5.7 L/min) pressure compensating laminar flow non-aerating outlet
- 430-XAB: Volume control and hot water limit stop ceramic
- 1/2 in NPSM supply inlets and coupling nut for 3/8 in or 1/2 in flexible riser
- User adjustable temperature control mixer
- Temperature Limiter
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F rated operating
- ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
