| Accessory Type | : | Pipe |
| End Style | : | Plain |
| Inside Diameter | : | 1.049 in |
| Length | : | 300 ft |
| Material | : | Polyethylene |
| Nominal Size | : | 1 in |
| Schedule Rating | : | SIDR 9 |
| Specifications | : | ASTM D2339, AWWA C901, NSF Approved |
| Wall Thickness | : | 0.117 in |
| Working Pressure | : | 200 psi |

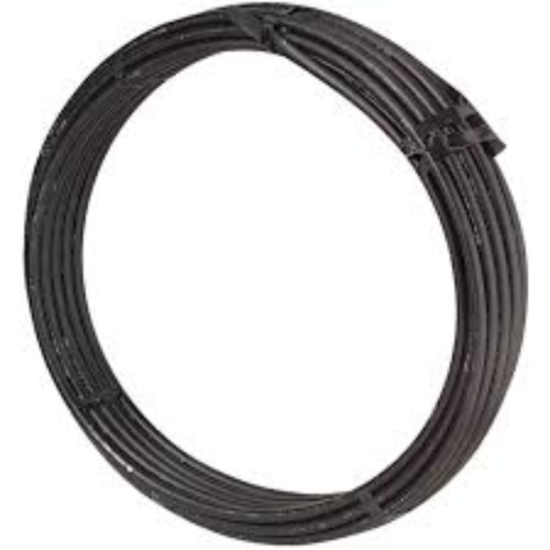

CRESLINE® Flexible Pipe, 1 in Nominal, Plain, 1.049 in Inside Dia, 300 ft Length, 0.117 in Wall Thickness, SIDR 9, 200 psi Working, Polyethylene, ASTM D2339, AWWA C901, NSF Approved
- 11 in expansion or contraction per 1000 ft per 10 deg F temperature change
- 200 psi at 73.4 deg F and below, 155 psi at 100 deg F, 125 psi at 120 deg F and 100 psi at 140 deg F
- Yellow label/black print
- 4710 high density polyethylene
- Pressure rating is the estimated maximum pressure that water as the medium in the pipe can exert continuously with a high degree of certainty that failure of the pipe will not occur
- Cresline hd flexible plastic pipe may be used on submersible pumps of 1.5 hp or less
