| Dimensions | : | 4 in H x 4 in W |
| Domestic/Import | : | Domestic |
| Inlet Connection | : | 1/2 in |
| Material | : | Brass |
| Mounting Type | : | Wall |
| Outlet Connection | : | 1/2 in |
| Suitable For Use With | : | MultiChoice® Shower Systems |
| Type | : | Universal |
| Warranty | : | Limited Lifetime |

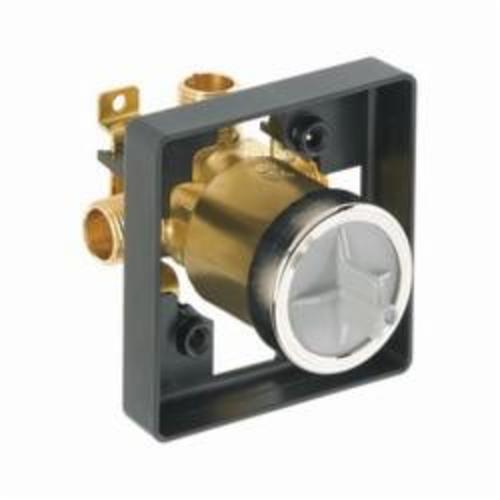

DELTA® High Flow Shower Valve Body, Universal, 1/2 in Inlet Connection, 1/2 in Outlet, Wall Mount, Brass, For Use With: MultiChoice® Shower Systems, 4 in H x 4 in W, Domestic
- MultiChoice® universal valve body only
- High flow for use with shower only models
- HF rough valves feature blocked tub port no additional plug needed when used in shower only application
- Back-to-back capability
- Can be tested with air (200 psi) or water (300 psi) without valve using supplied test cap
- Square plaster guard allows for right angle cuts
- Thin wall mounting
- 1/2 in outlets and connections
- Note: no tub outlet in HF model
- Note: should use proper fitting with each type (copper tubing, iron pipe and PEX fitting)
- Note: should use proper tooling with crimping PEX fitting and cold expansion PEX models
- Note: IP indicates female 1/2 in threaded connections
- Note: UN indicates universal type fitting and is 1/2 in NPT male thread with 1/2 in C.W.T. female sweat
- Universal fittings
