| Cooling Capacity | : | 48000 Btu/hr |
| Dimensions | : | 33 in H x 28-1/4 in W x 28-1/4 in D |
| Discharge Line Size | : | 3/8 in |
| EER Rating | : | 11 |
| Fuse Size | : | 50 A |
| Power Source | : | 208 to 230 VAC 60 Hz 1 ph 31.9 A |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13 |
| Series | : | 4AC13L |
| Sound Level | : | 79 dBA |
| Suction Line Size | : | 7/8 in |
| Type | : | Louvered |

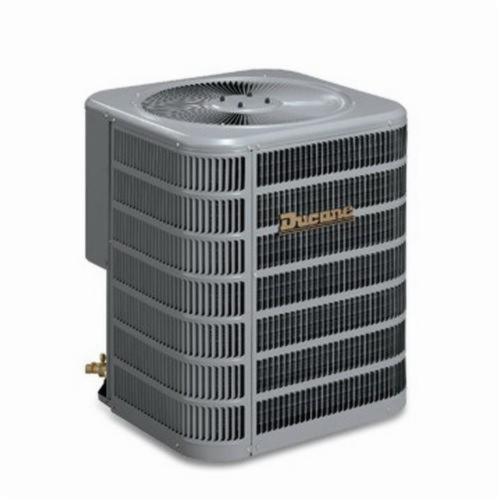

The Ducane 4AC13 is built with carefully selected components, like the heavy-duty scroll compressor, and is 100% factory-tested to ensure your air conditioner will last for years to come. The Seasonal Energy Efficiency Ratio (SEER), is the standard measure of an air conditioner's operating efficiency. A higher SEER indicates better performance and energy savings. Rated at 13 SEER, the Ducane 4AC13 air conditioner uses less energy than older units, so you'll spend less on utility bills.
Ducane™ Split System Air Conditioner, Louvered, Series: 4AC13L, 48000 Btu/hr Cooling, 11 EER, 13 SEER, 208 to 230 VAC 60 Hz 1 ph 31.9 A, 50 A Fuse, R-410A, 79 dBA, 7/8 in Suction Line, 3/8 in Discharge Line, 33 in H x 28-1/4 in W x 28-1/4 in D
- 13 SEER efficiency rating means you can save on utility bills, compared to an older or less efficient unit
- Permanently lubricated condensers fan motor needs no annual maintenance
- Rigorous run-testing of each unit in our factory helps ensures the most reliable performance in your home
- Heavy duty, single stage scroll compressor is built tough for years of reliable, trouble free performance
- 10 year limited warranty on the compressor and parts means lasting peace of mind, applies to residential applications only
- High quality condensers coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
- Top discharge directs hot air away from living area and shrubbery
- Easy access to electrical panels, pre-wired for easy hook up
- Corner mounted service valves for easy hook up and service
- Liquid line filter drier shipped loose
- Charged for 15 feet of interconnecting tubing
