| Color | : | Yellow |
| Includes | : | AAV3 Air Velocity and Temperature Accessory, 9 V Alkaline Battery (installed), Operator's Manual |
| Specifications | : | +/- 0.1 deg F Resolution |
| Suitable For Use With | : | Vane Anemometer |
| Warranty | : | Limited |

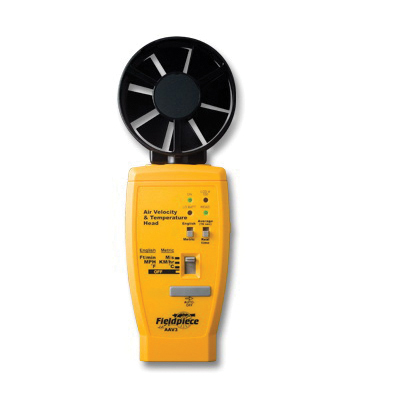

The AAV3 is an anemometer accessory head for use with our modular instruments that measures air velocity and temperature in English or Metric units: Ft/min, M/s, MPH, KM/hr, deg F (degrees Fahrenheit) or deg C (degrees Celsius). Multiply your air velocity by the register's free area to estimate CFM or diagnose duct blockages and quickly check the airflow balance in a conditioned space. Use with our DL3 Data Logger to track airflow or temperature over time. Features average and real time testing modes.
Fieldpiece Anemometer Head, For Use With: Vane Anemometer, +/- 0.1 deg F Resolution, Yellow
- Works with any fieldpiece expandable instrument or handle or any DMM with mVDC ranges and our detachable leads
- Measures air velocity and measures air temperature
- Measure in hard to reach areas using detachable test leads
- Display readings smoothly in average mode or switch to real-time measurement
- Low battery indicator
- Auto power-off after 10 min (may be disabled)
- Estimate CFM
- Large vane covers most of register's free area
- Displays average measurement and real-time
- Red LED for low battery indication
- 1mVDC/unit of measure except FPM >2000 At >2000FPM the green light lights up and conversion rate changes to 1mVDC/100FPM (multiply LCDX100) conversion
- +/-3% full scale + 1 digit air velocity accuracy
- +/-1 deg F (32 to 110 deg F, +/-2 deg F (-4 deg F to 32 V and 110 to 140 deg F) temperature accuracy
- Displays parameters directly on DMM set on mVDC scale
- Ball bearing moving vane
- Works like all the other Fieldpiece accessory heads
- 32 to 122 deg F temperature
