| AC Current Accuracy | : | +/-2% |
| Counts | : | 5000 |
| Dimensions | : | 287.5 mm H x 79.5 mm W x 50 mm D |
| Display | : | Dual Backlight |
| Frequency Rating | : | 500 Hz to 1 MHz |
| Includes | : | SC620 Meter, ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath, ATB1 Wrap Tab Type K Thermocouple, ASA2 Short Alligator Lead Extensions, Velcro Strap, 9V Battery and ANC7 Padded Case |
| Jaw Capacity | : | 1.2 in |
| Operating Temperature | : | 32 to 122 deg F |
| Power Source | : | (1) Alkaline 9V Battery |
| Resistance | : | 500 Ohm to 50 MOhm |
| Safety Rating | : | CATIII 600V, Class II and Pollution Degree 2 |
| Voltage Accuracy | : | +/-1.2% AC, +/-0.5% DC |

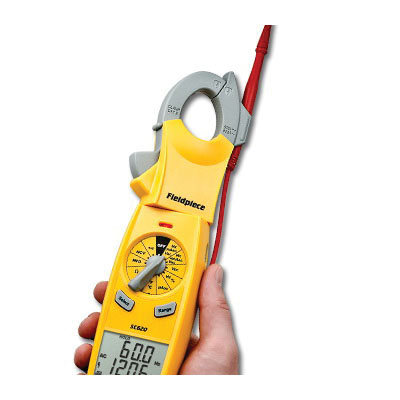

The SC620 swivel-head clamp meter is packed with all the electrical measurements HVACR professionals use everyday. It also includes a host of safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, the SC620 clamp meter has temperature, capacitance, and microamps DC for flame diode tests. Its a rugged workhorse you can count on to get the job done easier, faster, and more safely.
Fieldpiece Clamp Meter, 500 Ohm to 50 MOhm, 500 Hz to 1 MHz, 1.2 in Jaw, Counts: 5000, Dual Backlight Display, +/-2% Accuracy, +/-1.2% AC, +/-0.5% DC Accuracy, Safety Rating: CATIII 600V, Class II and Pollution Degree 2, (1) Alkaline 9V Battery, 32 to 122 deg F Operating, 287.5 mm H x 79.5 mm W x 50 mm D
- The SC620 is fast reacting, easy-to-use, and rugged, with extended temperature tolerances that allow for testing in freezers and on hot rooftops, designed specifically for HVACR field service
- The SC620 is a dedicated digital multimeter that offers specific features and benefits to help HVACR professionals do more, everyday - Volts AC/DC, swivel clamp, magnetic strap, dual display, temperature F/C, capacitance, duty cycle %, 400 amps AC, microamps DC, frequency via leads and clamp, non-contact voltage, 50 mega ohm with 0.1 resolution, continuity, diode test, hold, clamp probe holder, Low battery indicator, Hi-voltage Warning
- Lead storage
- Swivel-head clamp
- Magnetic strap
- Frequency via leads and clamp
- 60 second duration with auto-off blue color backlight
- Approx 30 minutes auto power off
- 100 hrtypical alkaline battery life
- Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
- Up to 6562 ft altitude
- 600 VDC or 600 VAC rms unless otherwise stated
- Automatic zero
- 3.3 times per second, nominal measurement rate
- 500 micro A DC
- 5% to 95% duty cycle
- 5 microF to 5 mF capacitance
- 500 ohm continuity
- 0.8 mA diode test
