| AC Response | : | 100 ms |
| Counts | : | 5000 |
| Dimensions | : | 287.5 mm H x 79.5 mm W x 50 mm D |
| Display | : | LCD |
| Electrical Rating | : | 400 A |
| Frequency Rating | : | 50 to 500 Hz |
| Includes | : | SC640 Meter, ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath, ATB1 Wrap Tab Type K Thermocouple, ASA2 Short Alligator Lead Extensions, Velcro Strap, 9V Battery, ANC7 Padded Case |
| Material | : | ABS |
| Operating Temperature | : | 32 to 122 deg F |
| Power Source | : | Alkaline Battery |
| Resistance | : | 50 mOhm |
| Safety Rating | : | 600 V |

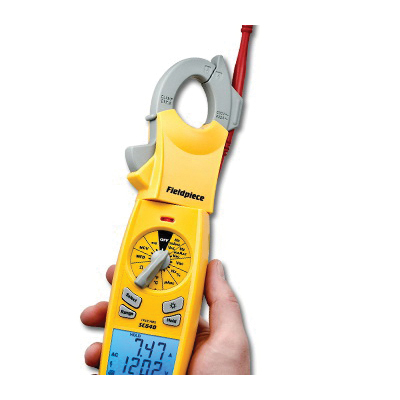

The SC640 clamp meter is packed with more features and measurements than any clamp meter in the HVACR industry. The loaded SC640 features lead storage, a swivel head, test lead holder, heavy duty magnetic strap, jaw flashlight, and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces. Plus the SC640 hosts all the electrical measurements HVACR pros use everyday, along with features like True RMS, Inrush current, capacitance, temperature, duty cycle, and uA DC.
Fieldpiece Loaded Clamp Meter, 400 A, 50 mOhm, 50 to 500 Hz, Counts: 5000, LCD Display, 100 ms AC Response, Safety Rating: 600 V, Alkaline Battery, 32 to 122 deg F Operating, 287.5 mm H x 79.5 mm W x 50 mm D, ABS
- Swivel-head with LED jaw flashlight
- Selector dial backlight
- Large backlit display
- Magnetic strap
- Lead storage
- Inrush current
- Swivel clamp
- Probe storage
- Frequency via leads and clamp
- Non-contact voltage alert
- Clamp probe holder
- Clamp jaw light
- Low battery indicator
- Hi-voltage Warning
- LCD backlight display
