| Amperage Rating | : | 5.1 to 48 A |
| Bulb Size | : | 3/8 x 2-7/8 in Copper |
| Differential | : | 5 to 30 deg F |
| Domestic/Import | : | Import |
| Mounting Type | : | Horizontal/Vertical/Surface |
| Switch Type | : | Micro Switch™ Snap-Acting |
| Temperature Rating | : | 65 to 200 deg F |
| Type | : | High and Low limit |
| Voltage Rating | : | 120 to 240 VAC/0.25 to 12 VDC |
| Warranty | : | Limited |

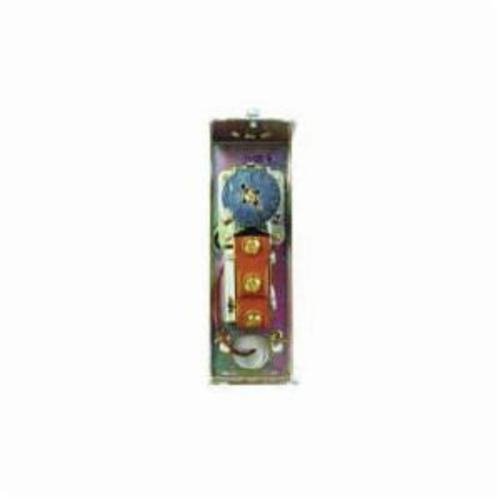

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
Honeywell Aquastat Controller, High and Low limit, 120 to 240 VAC/0.25 to 12 VDC, 65 to 200 deg F, 5.1 to 48 A, 5 to 30 deg F Differential, Horizontal/Vertical/Surface Mount, 3/8 x 2-7/8 in Copper Bulb, Micro Switch™ Snap-Acting Switch, Import
- Totally enclosed Micro Switch™ snap acting switches operate on temperature rise to set point
- Visible control point scale and external adjustments screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct, well immersion, or surface mounting of the sensing element available
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- Direct or well immersion TRADELINE® models include heat conductive compounds
- Select models have wells
- 5.1 to 8 A at 120 to 240 VAC for full load
- 30.6 to 48 A at 120 to 240 VAC for locked rotor
