| Differential | : | 8 deg F |
| Humidity Range | : | 0 to 95% |
| Insulation Depth | : | 1-1/2 to 3 in |
| Mounting Type | : | Horizontal/Vertical |
| Temperature Rating | : | 120 to 240 deg F |
| Type | : | High and Low limit |
| Voltage Rating | : | 120 VAC |
| Warranty | : | Limited |

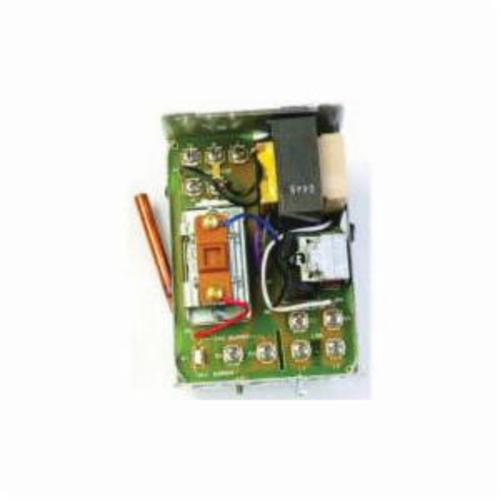

The L8148 Aquastat® Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
Honeywell Aquastat Relay, High and Low limit, 120 VAC, 120 to 240 deg F, 8 deg F Differential, Horizontal/Vertical Mount, 1-1/2 to 3 in Insulation Depth, 0 to 95% Humidity
- Immersion type controllers that combine high limit protection with switching relay control of burner and circulator motors
- High limit opens burner circuit only
- Select models include transformer and accessory terminals for adding a remote low limit controller
- Case available for horizontal or vertical mounting
- Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valves on L8124E)
- TRADELINE® models include well adapter tube of heat conductive compounds and range stops
- 0 to 95% RH non-condensing
