| Depth | : | 7.6 in |
| Domestic/Import | : | Import |
| Height | : | 120 VAC Voltage Rating |
| Igniter Warm-Up Time | : | 17/27 or 30/30 sec |
| Prepurge Time | : | 30 sec |
| Type | : | Hot Surface Ignition |
| Voltage Rating | : | 120 VAC |
| Warranty | : | Limited |
| Width | : | 5.6 in |

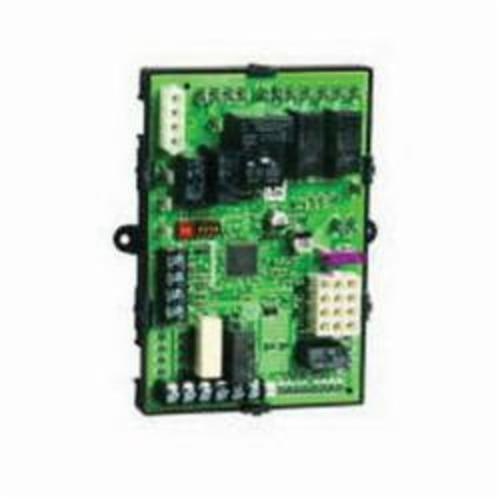

Honeywell Integrated Furnace Control, Hot Surface Ignition, 120 VAC, 17/27 or 30/30 sec Igniter Warm-Up Time, 30 sec Prepurge, 5.6 in Width, 7.6 in Depth, 3-1/2 in Height, Import
- Cross reference and wire harnesses provided for simple replacement over 195 existing furnace controls
- Main burner ignition using a 120 V hot surface igniter
- Flame rectification circuit to monitor flame presence
- Monitoring of system pressure switch, high temperature limit and rollout functions
- Appliance operation or safety requirements controlled via microprocessor
- Controls circulating fan motor based on appliance requirements, in response to a conventional low voltage thermostat
- LED system status, performance and diagnostic indication
- Twinning capability
- 120 VAC line/24 V low voltage
