| Coil Voltage | : | 24 VAC 60 Hz |
| Dimensions | : | 4.1 in L x 3.2 in W x 4.9 in H |
| End Style | : | NPT |
| Gas Type | : | Natural Gas |
| Ignition Type | : | 0.5 psi Pressure Rating |
| Includes | : | Natural to LP Conversion Kit |
| Nominal Capacity | : | 0.6 to 5.7 cu-m/hr |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | SV9541 |
| Temperature Rating | : | -40 to 175 deg F |
| Type | : | Standard Opening |
| Warranty | : | Limited |

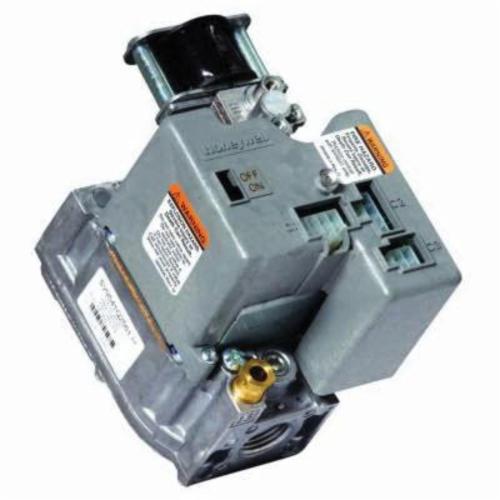

Honeywell SmartValve® Gas Valve, Standard Opening, Series: SV9541, 1/2 in Nominal Size, NPT, 0.5 psi, Intermittent Hot Surface Pilot Ignition, 0.6 to 5.7 cu-m/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, -40 to 175 deg F, 4.1 in L x 3.2 in W x 4.9 in H
- These controls communicate directly with an electronic fan timer (ST9160 electronic fan timer for single stage applications, ST9162 electronic fan timer for two-stage applications) in typical forced warm air furnace applications
- It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, these controls do not provide a postpurge function, because power to the control is removed when the thermostat call for heat ends
- This system is suitable for a wide range of fan-assisted combustion, gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances
- Straight-through body pattern
- 0 to 90 deg in any direction from the upright position of the gas control knob mounting
- 1.7 in WC low, 3.2 in WC high pressure regulator setting
