| Coil Voltage | : | 24 VAC 50/60 Hz |
| Dimensions | : | 5-3/8 in H x 4-1/16 in W x 2-11/16 in D |
| Domestic/Import | : | Import |
| Electrical Connection | : | 1/4 in Male Quick Connect Terminal |
| Gas Type | : | Natural Gas |
| Ignition Type | : | Direct/Intermittent Pilot |
| Includes | : | (2) 3/4 x 1/2 in Reducer Bushings and Natural to LP Conversion Kit |
| Nominal Capacity | : | 30000 to 415000 Btu/hr |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | VR8345 |
| Temperature Rating | : | -40 to 175 deg F |
| Type | : | 1-Stage |
| Warranty | : | Limited |
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 VAC, gas-fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

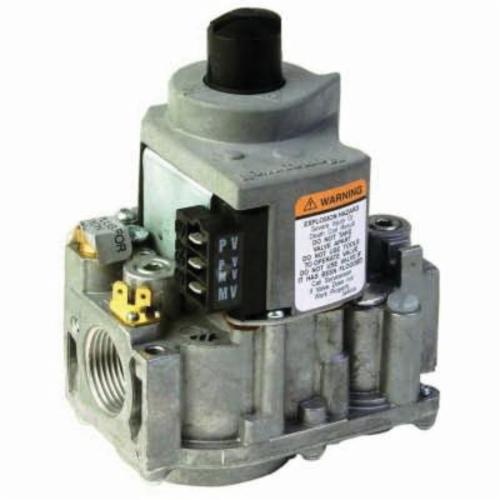

Honeywell Gas Valve, 1-Stage, Series: VR8345, 3/4 in Nominal Size, 0.5 psi, Direct/Intermittent Pilot Ignition, 30000 to 415000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 50/60 Hz Coil, 1/4 in Male Quick Connect Terminal, -40 to 175 deg F, 5-3/8 in H x 4-1/16 in W x 2-11/16 in D, Import
- Controls include manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
- Replaces many IP, HSI or DSI gas control
- For use with natural or manufactured gas or LP gas
- Includes converter kit to adapt from natural to LP gas
- Compact design
- All adjustments and wiring connections accessible from top of control
- 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
- Internal inlet screen blocks contaminants in gas line from entering valve
- Straight-through body pattern
- 0 to 90 deg in any direction from the upright position of the gas control knob mounting
- 3-1/2 in WC pressure regulator setting
- Standard opening gas vavle
