| Domestic/Import | : | Domestic |
| Input Voltage | : | 98 to 132 VAC |
| Length | : | 5 in |
| Width | : | 8 in |

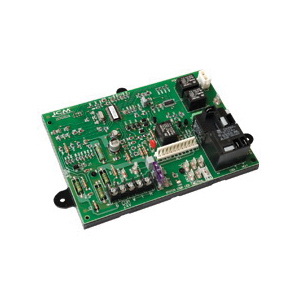

ICM282A Furnace Control with software for enhanced controls operation in counterflow and downflow furnace applications. Replacement for OEM models including Carrier HK42FZ0-xx series control boards.
ICM™ Furnace Control Board, 5 in Length, 8 in Width, 98 to 132 VAC Input, Domestic
- Low cost replacement furnace control board
- Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor based precision
- Software for enhanced controls operation in counterflow and downflow furnace applications
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM282A control
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with 24 VAC standard thermostat
- Provides diagnostic LEDs to aid in troubleshooting
- 1-1/2 in H
- 5 A at 120 VAC ignitor
- 30 A, 2 hp, 240 VAC cool blower
- 5 A, 1/2 hp, 240 VAC heat
- 4 A FLA, 8 A LRA at 120 VAC inducer motor
- 1.5 A at 30 VAC gas valve
