| Depth | : | 1-5/8 in |
| Domestic/Import | : | Domestic |
| Height | : | 5-3/8 in |
| Voltage Rating | : | 24/120 VAC |
| Warranty | : | 1 Year |
| Width | : | 4 in |

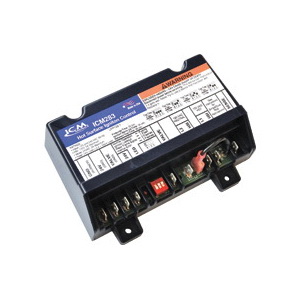

ICM™ Gas Ignition Control, 24/120 VAC, 5-3/8 in Height, 4 in Width, 1-5/8 in Depth, Domestic
- HSI Gas Ignition Control - replacement for popular models, including Honeywell S8910U-1000
- Low cost replacement HSI control for Honeywell, Robertshaw and White Rodgers
- Single/dual rod sensing capabilities
- For gas fired furnaces, boilers and other heating appliances
- Switch selectable lockout times, ignition trials
- Works with both natural and LP gas systems
- Diagnostic LED to aid in troubleshooting
- Pre-purge time: 32 sec, trial time: 4 or 7 sec (switch selectable), ignition trials to lockout: 1 or 3 (switch selectable)
- Flame sense: Single rod or dual rod
- HSI: 120 V, 5A max
- Valve: 24 V, 2A max
- Total: 24 V Load = 0.4 + valve load
