| Actuator Type | : | Handwheel |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Handwheel Diameter | : | 2.16 in |
| Inlet to Outlet Length | : | 1.61 in |
| Media | : | Steam/Water |
| Nominal Size | : | 3/8 in |
| Port Type | : | Full |
| Pressure Class | : | 125 lb |
| Pressure Rating | : | 200 psi |
| Series | : | T-415 |
| Softgoods Material | : | NBR Stem Packing |
| Top to Inlet Center | : | 2.8 in |
| Trim Material | : | Brass Stem |
| Type | : | Heavy Duty |
| Warranty | : | 5/25 Years |
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

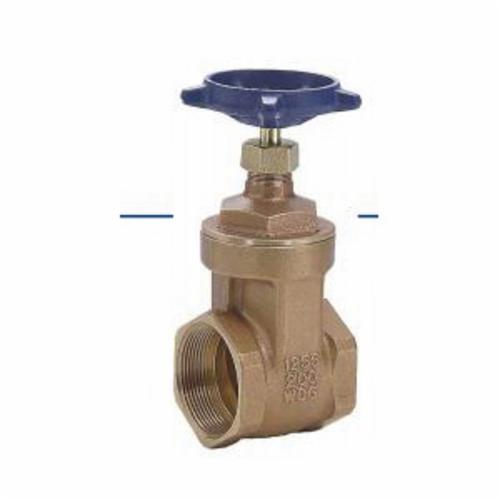

LEGEND Gate Valve, Heavy Duty, Series: T-415, 3/8 in Nominal, FNPT, 200 psi Pressure Rating, 125 lb Pressure Class, Full Port, Media: Steam/Water, Handwheel Actuator, 1.61 in Inlet to Outlet Length, 2.8 in Top to Inlet Center, Bronze Body, Brass Stem Trim, Softgoods Material: NBR Stem Packing, 2.16 in Handwheel Diameter, Domestic
- Durable, all-bronze body construction resists pipeline stresses and distortion
- Non-rising stem design with oversized packing, is compact and reliable
- Gland follower stem seal design lasts longer than traditional packing nut designs, by isolating the packing nut's rotational movement from the packing's compression seal
- Screwed in bonnet is close-tolerance machined to seal correctly, even during internal pressure and temperature variations
- Integral seats are precision-ground to match each fully-guided disc-wedge, enhancing the drip-tight seal
- Heavy duty, open-spoke cast iron handwheel dissipates heat quickly, minimizing the possibility of burn injury to the operator
- Full-flow waterway reduces pressure drop and flow turbulence
- Steel handwheel nut, aluminum identification disc cast iron handwheel brass packing nut, packing gland, locknut, cast bronze disc wedge
- Cast bronze body
