| Amperage Rating | : | 8.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | Open |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Thru Bolt/Bracket |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | REV |
| Service Factor | : | 1.25 |
| Shaft Size | : | 1/2 in Dia x 1.85 in L |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Type | : | PSC |
| Voltage Rating | : | 115 VAC |
MARS belted blower motors are designed to meet manufacturer's requirements for belted fan or blowers.

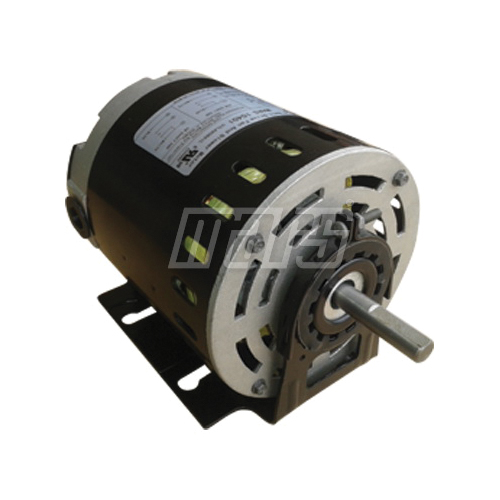

Mars® Belted Fan and Blower Motor, PSC, 115 VAC, 8.6 A, 60 Hz, 1/2 hp, 1, 1725 rpm, 1 Speed, Open, NEMA 48 Frame, 1/2 in Dia x 1.85 in L Shaft, REV, Service Factor: 1.25, Ball Bearing, Thru Bolt/Bracket Mount, 40 deg C, Insulation Class: Class B, 5-1/2 in Dia
- Slotted holes in base match 48 or 56 frame bolt patterns
- Continuous duty
- Automatic thermal overload protection
- Capacitor not included
