| Amperage Rating | : | 6.4/3.8 FLA |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | OAO |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 5 |
| Phase | : | 1 |
| Rotation | : | OAO Enclosure Type |
| Shaft Size | : | 1/2 in Dia x 4.94 in L |
| Speed | : | 350 to 1400 rpm |
| Temperature Rating | : | -20 to 55 deg C |
| Type | : | ECM |
| Voltage Rating | : | 120/240 VAC |

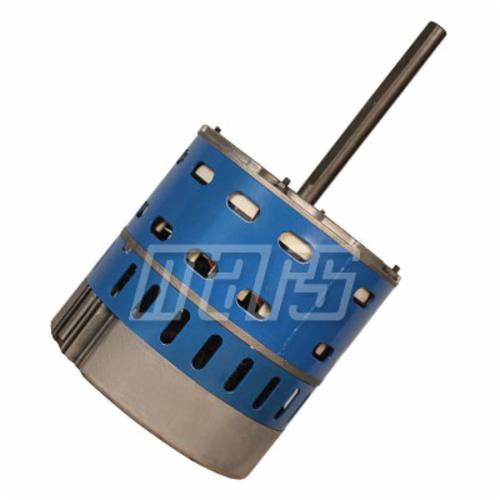

Mars® Azure® Digi-Motor® Direct Drive Blower Motor, ECM, 120/240 VAC, 6.4/3.8 FLA, 50/60 Hz, 1/2 hp, 1 ph, 350 to 1400 rpm, 5 Speed, OAO, NEMA 48 Frame, 1/2 in Dia x 4.94 in L Shaft, CW/CCW, Ball Bearing, Belly Band Mount, -20 to 55 deg C, Insulation Class: Class B, 5-1/2 in Dia
- Outboard replaceable surge protector
- Adjustable speeds
- High efficiency 85 percent
- Multi-horsepower
- Dual voltage
- Thermal overload protected
- For use with PSC and X-13 replacement motor
