| Collection | : | M-PACT® |
| Domestic/Import | : | Import |
| Includes | : | Check Stops Volume Control |
| Inlet Connection | : | 1/2 in Copper |
| Material | : | Brass |
| Outlet Connection | : | 1/2 in Copper |
| Valve Type | : | Pressure Balance |
| Warranty | : | Check Stops Volume Control Includes |

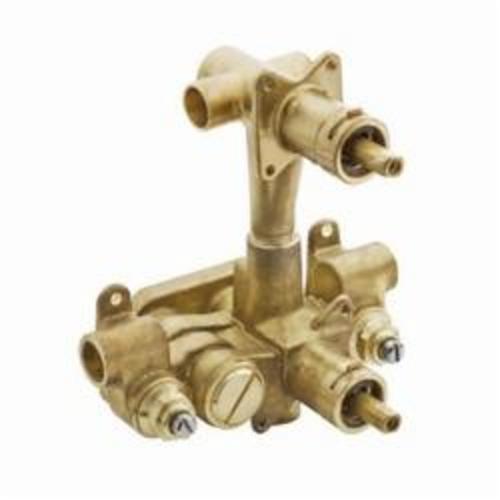

Moen® Rough-In Valve, M-PACT® Collection, Pressure Balance, 1/2 in Copper Inlet Connection, 1/2 in Copper Outlet, Brass, Import
- Built on the Moen M-Pact common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- 1225™ cartridge design
- 4-ports/2 outlets
- Pressure balancing valve design with integral check stops, 1/2 in CC connections, built-in 2-function transfer valve
- Pull-on/push-off operation of temperature and volume
- Rotational control of transfer valve
- Temperature operates through an 180 deg arc of handle travel (full cold to full hot)
- Adjustable temperature limit stop to control maximum hot water temperature
- 180 deg rotation of transfer valve handle with stops
- Pressure balancing mechanism maintains selected discharge temperature to +/-2 deg F
- 162154 cartridge design for transfer valve
