| Series | : | 0230 |
| Suitable For Use With | : | Shallow Rough-In Type Siphon Jet Water Closets |
| Type | : | Vertical |
| Warranty | : | 1 Year Limited |

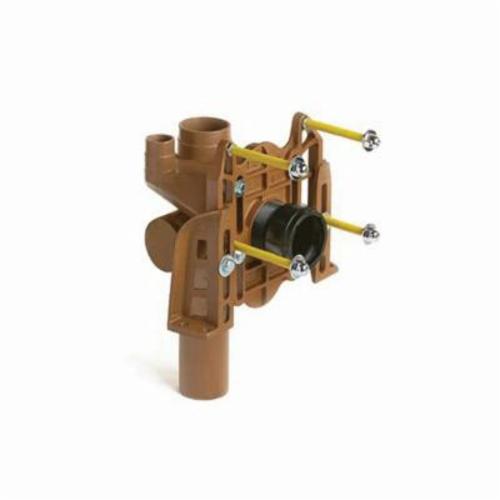

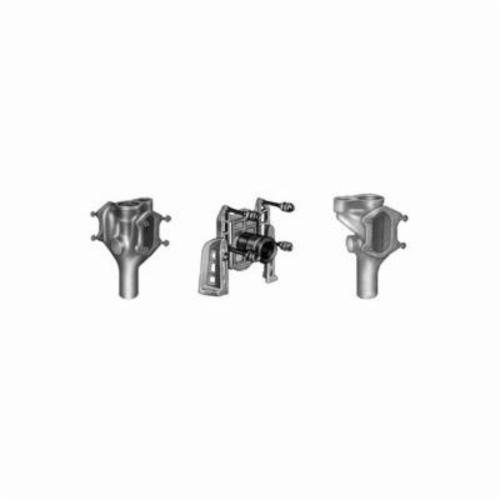

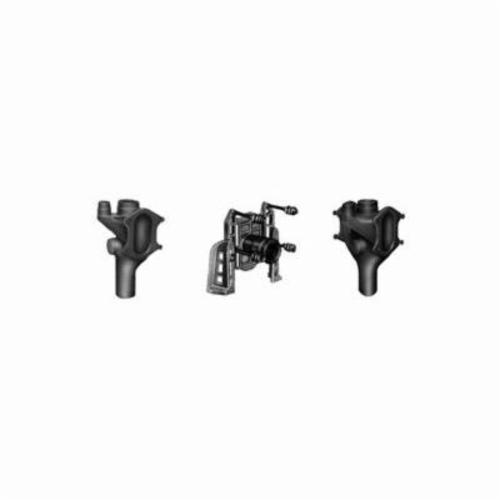

Smith® Vertical Adjustable Fixture Support, Series: 0230, For Use With: Shallow Rough-In Type Siphon Jet Water Closets
- Contractor friendly support for shallow rough-in type siphon jet water closet
- Consisting of nipple and adjus-to-wall coupling permitting adjustment from 3 in min to 4 in max
- No hub connection type
- Integral adjustable wall coupling nipple, and test cap
- Adjustment at the faceplate rather than at the rear of the water closet (coupling)
- 10 in (254 mm) long nipple cover various installations
- Enhanced sealing with an "O" ring at the faceplate
- Note: base support must be securely anchored to floor with four 1/2 in bolts provided by contractor
- When nipple lengths between 3 1/4 in (83) and 8 1/4 in (210) are specified, the 8 1/4 in (210) nipple will be supplied, nipple must be cut to specified length by others
- 9 in (230) core drilled hole is required for rough-in 4 1/4 (110) thru 6 1/2 (165)
- 1 1/2 in or 2 in tapped inlet available
