| Conductor Size | : | 18 AWG |
| Conductor Type | : | Solid Bare Copper |
| Insulation Material | : | Polypropylene |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Length | : | 250 ft |
| Number of Conductors | : | 6 |
| Resistance | : | 6.32 Ohm/20 deg C |
| Strands | : | Solid |
| Temperature Rating | : | -20 to 60 deg C |
| Type | : | General Purpose |
| Voltage Rating | : | 150 V |

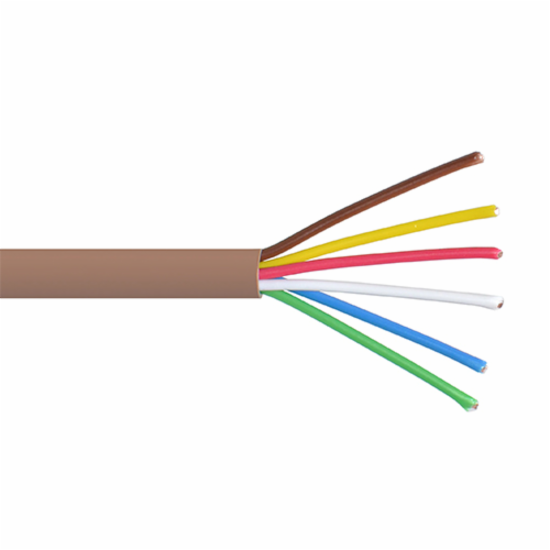

18 GAUGE THERMOSTAT WIRE - All Thermostat Wire is constructed with solid conductors, PVC insulation (6 mils), parallel conductors, PVC jacket, 25 pF/< capacitance between conductors @ 1 KHz (nom.), and 6.32 Ohms/1000 foot DC resistance per conductor @ 20°C (nom.)
- Thermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications from floor to floor and up access shafts without conduit
- 150 Voltage rating per NEC® Article 725
- ETL listed to UL 13
- Meets UL 1581 Vertical Tray Flame Test (FT-1)
- Type CL2
