| Accuracy | : | +/-1% |
| Color | : | Black |
| Connection Size | : | 1/4 in MNPT Lower |
| Dial Diameter | : | 4-1/2 in |
| Dimensions | : | 4.96 in Dia x 1.28 in D |
| Material | : | Cast Aluminum |
| Mounting Type | : | Stem |
| Pressure Range | : | 30 in Hg to 60 psi |
| Series | : | 600CB |
| Temperature Rating | : | 212 deg F |
| Type | : | Commercial Grade |
| Warranty | : | 1 Year |

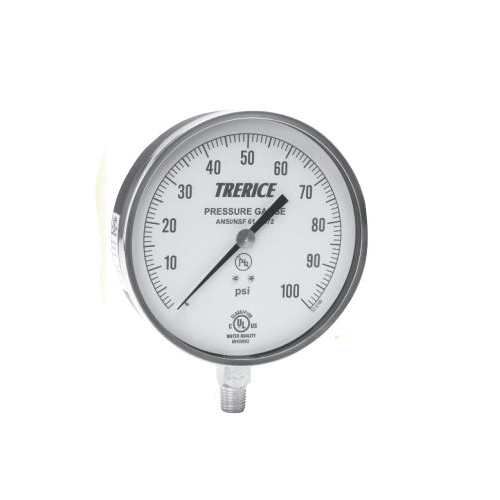

The 600CB Trerice Contractor Gauge is among the most frequently specified HVACR gauges within the construction industry. This gauge offers high reliability at a moderate price. The 600CB is furnished with a cast aluminum case and an adjustable pointer. Wetted parts are Lead-Free (PBF) brass.
Trerice Contractor Pressure Gauge, Commercial Grade, Series 600CB, 30 in Hg to 60 psi, 1/4 in MNPT Lower Connection, 4-1/2 in Dial Diameter, +/-1% Accuracy, 212 deg F, Stem Mount, Cast Aluminum, Black, 4.96 in Dia x 1.28 in D
- Brass movement
- Friction type, 304 stainless steel ring
- Adjustable black finish pointer
- Bronze tube, brass socket
- Clear glass lens
- Cast aluminum, black finished, stem-mounted flangeless case
- Aluminum/white background with black graduations and markings dial face
