| Connection Type | : | Wire Lead |
| Damper Size | : | 8 x 12 in |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Frequency Rating | : | 50/60 Hz |
| Gauge | : | 24 ga |
| Material | : | Steel |
| Series | : | RSD |
| Shape | : | Round |
| Type | : | Spring-Return |
| Voltage Rating | : | 24 VAC |

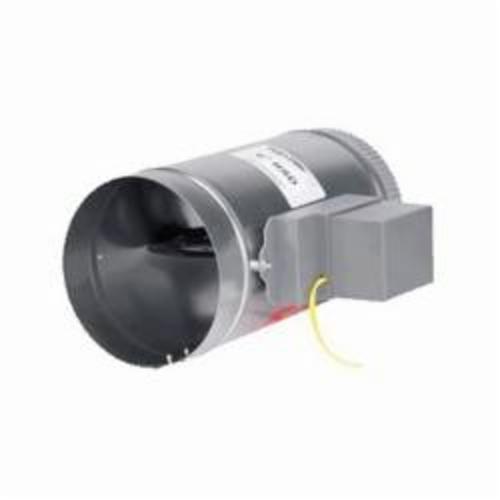

Model RSD is a round single blade damper constructed from heavy 24 ga galvanized steel. The 24 VAC motor actuator is direct coupled to the drive shaft. It is power closed/spring open (standard). The damper can be field reversed to a power-open/spring closed model. The RSD damper may be used with either flexible or rigid ductwork. The RSD has a double layered blade design with an integrated cellular foam gasket to provide a seal when the damper is in the closed position. The RSD also has a Travel Limiter to prevent the damper from closing 100% if your application requires.
Ultra-Zone™ Motorized Zone Damper, Spring-Return, Series: RSD, 24 VAC, 50/60 Hz, 8 x 12 in Damper, Wire Lead Connection, Round, 24 ga, Steel, Galvanized, Domestic
- It does not have LED or an end switch
- Use with BM and BMPlus control panel
