| Dimensions | : | 2-7/8 in OD x 1.97 in W |
| End Style | : | Grooved |
| Finish | : | Orange Enamel |
| Fitting/Connector Type | : | Coupling |
| Length | : | 6.26 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 2-1/2 in |
| Pressure Rating | : | 750 psi |
| Series | : | 107N |
| Type | : | Pre-Assembled |

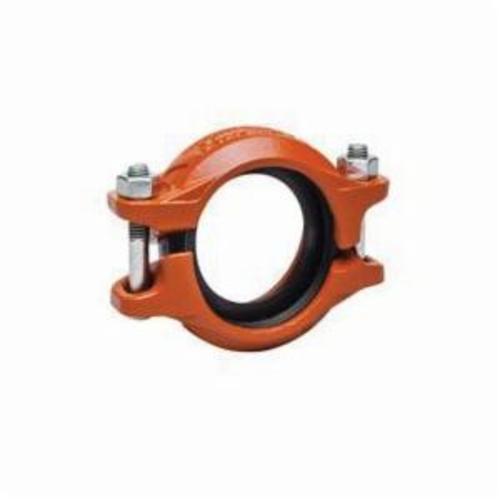

Victaulic® QuickVic™ Rigid Coupling, Pre-Assembled, Series: 107N, Fitting/Connector Type: Coupling, 2-1/2 in Nominal Size, Grooved, 6.26 in Length, 750 psi, Ductile Iron, Orange Enamel, 2-7/8 in OD x 1.97 in W
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Joins carbon steel and stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- Working pressure dependent on material, wall thickness and size of pipe
- Operating temperature dependent on gasket selection from section 3.0
- 0.15 in allowable pipe end separation, (2) 3/8 X 2-1/2 in bolt/nut, 4.37 in body outside diameter
- EPDM gasket
- Carbon steel bolts/nuts
