| Dimensions | : | 3-1/2 in OD |
| End Style | : | Grooved |
| Finish | : | Orange Enamel |
| Fitting/Connector Type | : | Coupler |
| Material | : | Ductile Iron |
| Nominal Size | : | 3 in |
| Series | : | 177 |

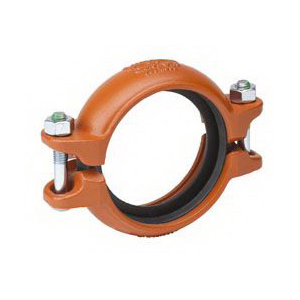

Victaulic® QuickVic™ Pipe Flexible Coupling, Series: 177, Fitting/Connector Type: Coupler, 3 in Nominal Size, Grooved, Ductile Iron, Orange Enamel, 3-1/2 in OD
- Grade EHP EPDM gasket
- For use with steel pipes
- 5 in Dia x 7.05 in L pre-assembled, 4.68 in Dia x 6.81 in L x 2.02 in W joint assembled
- The Style 177 flexible coupling can accommodate pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa
- The coupling's maximum pressure rating will depend on the diameter and wall thickness of the pipe
- Sizes 2-4 in/50-100 mm may be used to join 304/304L and 316/316L Schedule 10 stainless steel pipe from full vacuum (29.9 in Hg/760 mm Hg) to a maximum rated working pressure of 300 psi/2065 kPa
- Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
