| Body Material | : | 1-1/2 in H Dimensions |
| Dimensions | : | 1-1/2 in H |
| End Style | : | FHT x MHT |
| Nominal Size | : | 3/4 in |
| Series | : | 8 |
| Warranty | : | Limited |
| Working Pressure | : | 125 psi |

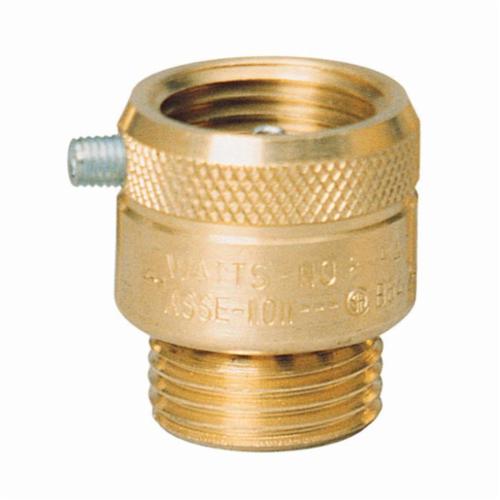

WATTS® Hose Connection Vacuum Breaker, Series: 8, 3/4 in Nominal Size, 125 psi Working, FHT x MHT, Brass Body, 1-1/2 in H
- Brass body (all models except 8P)
- Stainless steel working parts for longevity
- Durable rubber diaphragm and disc for consistent positive seating
- Furnished with exclusive non-removable feature and standardly equipped to allow sill cock to be drained
- Device should only be installed on approved sill cocks containing at least four full threads
- Non-removable once installed
- 180 deg F
- Do not use where discharge of water is objectionable
- Do not use Models 8, 8A, 8B, 8P, 8FR Hose Bibb Vacuum Breakers on frost-free hydrants specify model NF8
- Inquire with governing authorities for local installation requirements
- Series 8 is tested and certified under ANSI A112.1.3 (ASSE 1011), which precludes use under continuous pressure, this valve should only be used in areas where spillage of water will not cause damage
