| Body Material | : | Brass |
| End Style | : | Compression |
| Flow Rate | : | 0.25 gpm |
| Media | : | Hot and Cold Water |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 150 psi |
| Series | : | LFUSG-B |
| Softgoods Material | : | Buna-N Rubber Disc/O-Ring |
| Temperature Rating | : | 80 to 120 deg F |
| Type | : | Brass Body Material |
| Warranty | : | 1 Year Limited |

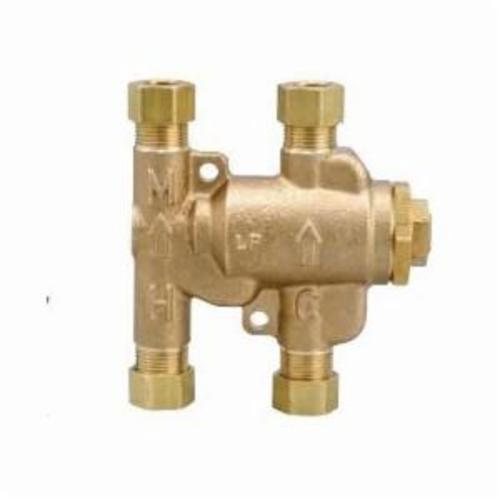

WATTS® Under Sink Guardian® Thermostatic Mixing Valve, Lead Free, Series: LFUSG-B, 3/8 in Nominal Size, Compression, 150 psi, 80 to 120 deg F, 0.25 gpm, Media: Hot and Cold Water, Brass Body, Buna-N Rubber Disc/O-Ring
- Lead free brass body construction
- Installs easily between the stop valves and faucet
- Includes tamper resistant locking nut to prevent accidental misadjustment
- Built-in check valves prevent migration of hot water to cold and cold water to hot water piping
- Provided with cap for three port application
- Integral strainer with 40 mesh stainless steel screens to filter out debris
- 0.25 gpm (1.0 l/m) flow
- 30 psi minimum supply pressure
- 120 to 180 deg F hot inlet temperature
- 39 to 80 deg F cold inlet temperature
- 5 deg F minimum inlet temperature differential
- 80 to 120 deg F temperature
- 150 psi maximum pressure
- The wetted surface of this product contacted by consumable water contains less than one quarter of 1% of 0.25% of lead by weight
