| Color | : | White |
| Control Range | : | 45 to 90 deg F |
| Differential | : | Heat/Cool |
| Dimensions | : | 3-13/16 in H x 5-1/8 in W x 1-1/8 in D |
| Display | : | Large LCD with backlight |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto-On |
| Humidity Range | : | 90% Non-Condensing |
| Includes | : | B/O Terminals, F61-2550 Wall Plate and F61-2510 Junction Box Adapter |
| Mounting Type | : | Vertical |
| Number of Stages | : | 1 |
| Power Source | : | Battery |
| Series | : | Heat/Off System Switching |
| System Switching | : | Heat/Off |
| Terminal Designations | : | RH, W |
| Voltage Rating | : | 20 to 30 VAC |

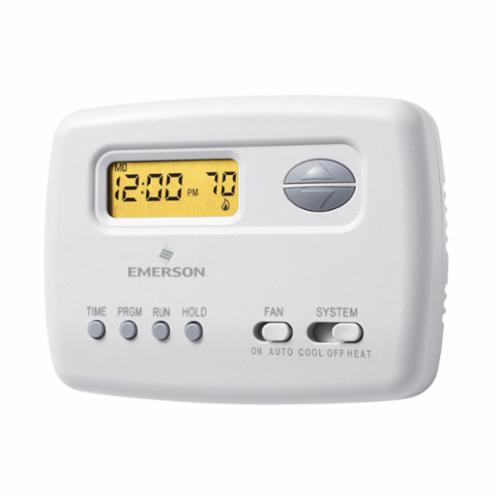

White-Rodgers™ Digital Non-Programmable Thermostat, Series: 70, 45 to 90 deg F Control Range, Heat/Cool Differential, Terminal Designations: RH, W, System Switching: Heat/Off, Fan Switching: Auto-On, 1 Stage, 20 to 30 VAC, 90% Non-Condensing Humidity, Large LCD with backlight Display, Battery, Vertical Mount, White, 3-13/16 in H x 5-1/8 in W x 1-1/8 in D, Import
- Fossil fuel or electric heat compatible
- Selectable Celsius or Fahrenheit temperature display
- Electronic accuracy
- 1 A terminals per terminals loads
- 1.5 a maximum terminals loads when all terminals combined
- 1.2 sq in display
- Permanent memory back-up
- 32 to 105 deg F ambient
- -4 to 150 deg F shipping
- Optional continuous display light with hardwired connection
- For heat and cool, gas oils, electric, heat pumps application
- Millivolt compatible
