| Amperage Rating | : | 530 mA |
| Depth | : | 25 VAC Voltage Rating |
| Domestic/Import | : | Import |
| Electrical Connection | : | 1/4 in Spade Terminal and Molex Plug |
| Gas Type | : | Natural Gas/Liquid Propane |
| Height | : | 8 in |
| Igniter Warm-Up Time | : | 17 sec |

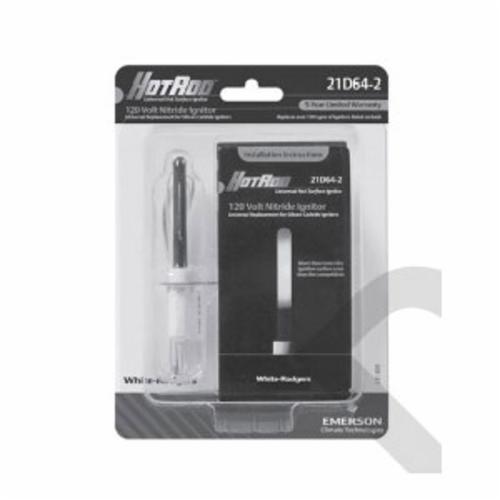

| Includes | : | 21D64-2 Silicon Nitride Igniter Upgrade Kit |
| Lead Length | : | 15-1/2 in |
| Probe Length | : | 15-1/2 in |
| Type | : | Universal |
| Voltage Rating | : | 25 VAC |
| Width | : | 5-1/4 in |

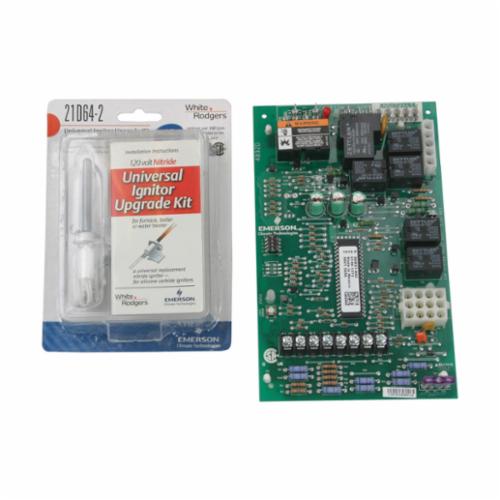

White-Rodgers™ Hot Surface Ignition Control, Universal, 15-1/2 in Lead Length, 15-1/2 in Probe Length, 25 VAC, 530 mA, 1/4 in Spade Terminal and Molex Plug, Natural Gas/Liquid Propane, 17 sec Igniter Warm-Up Time, 5-1/4 in Width, 1-1/4 in Depth, 8 in Height, Import
- 120 VAC 3 speed PSC circulator output, two-speed inducer output, two stage gas valve output
- Pushbutton fault history retrieval
- Furnace status LED - tri-color (green, red and amber)
- Heat fan off delay (dipswitch selectable), fan on delay for cooling
- Auto second stage delay (dipswitch selectable)
- -40 to 175 deg F
- 2-stage gas valve output
- 3 A fuse protection
- Pressure switch inputs and monitoring
- Flash microprocessor with non-volatile memory
- Flame current measurement points
- 1.5 A valve relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- 1 a max at 120 VAC humidity
- 1 a max at 120 VAC electronic air cleaning
- 4 a max at 132 VAC ignitor relay
- 0.3 uA DC max current for flame detection
- 0.1 uA DC min current for flame detection
- 100 M ohm leakage resistance, 3 speed PSC blower motor systems
- Two stage hot surface ignition control
