| Amperage Rating | : | 9.4 A |
| Bearing Type | : | Sleeve |
| Cord Type | : | 3 Wire |
| Dimensions | : | 14-3/4 in H |
| Flow Rate | : | 90 gpm |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 4/10 hp |
| Impeller Type | : | Non-Clogging Vortex |
| Material | : | Cast Iron |
| Maximum Head | : | 18 ft |
| Motor Speed | : | 1725 rpm |
| Outlet Size | : | 2 in NPT |
| Series | : | Waste-Mate 264 |
| Temperature Rating | : | 130 deg F |
| Type | : | Single Phase Single Seal |
| Voltage Rating | : | 115 V |
| Warranty | : | 3 Wire Cord Type |

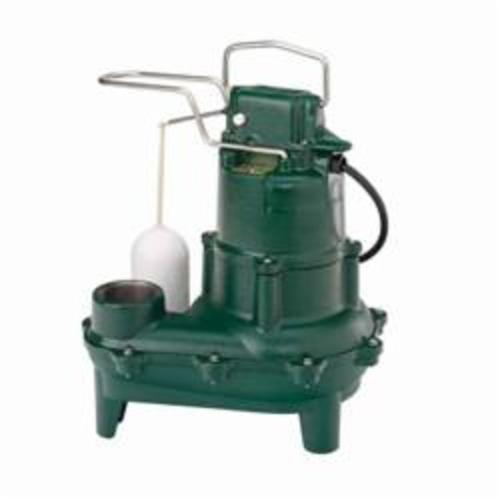

Zoeller® Submersible Pump, Single Phase Single Seal, Series: Waste-Mate 264, 90 gpm, 2 in NPT Outlet, 18 ft Maximum Head, 4/10 hp, 115 V, 9.4 A, 60 Hz, 1725 rpm Motor, 3 Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-3/4 in H
- Float-operated and submersible (NEMA 6)
- 2-pole switch
- Switch cap, motor and pump housing are durable cast iron construction
- Engineered plastic base
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Corrosion-resistant, powder coated epoxy finish
- Hermetically-sealed automatic reset thermal overload protection
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Passes 2 in spherical solids
- On point - 12-1/2 in, off point - 4-1/2 in
- Simplex and duplex systems available
- Automatic operation
- Models available packaged with piggyback variable level float switch
- 10 ft cord
- Permanent split capacitor motor type
- Class B insulation
