| Amperage Rating | : | 10.4 A |
| Bearing Type | : | Sleeve |
| Cord Type | : | 3 Wire Neoprene |
| Dimensions | : | 14-5/16 in H |
| Flow Rate | : | 128 gpm |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Impeller Type | : | Non-Clogging Vortex |
| Material | : | Cast Iron |
| Maximum Head | : | 21-1/2 ft |
| Motor Speed | : | 1750 rpm |
| Outlet Size | : | 2 or 3 in NPT |
| Series | : | 60 Hz Frequency Rating |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 115 V |

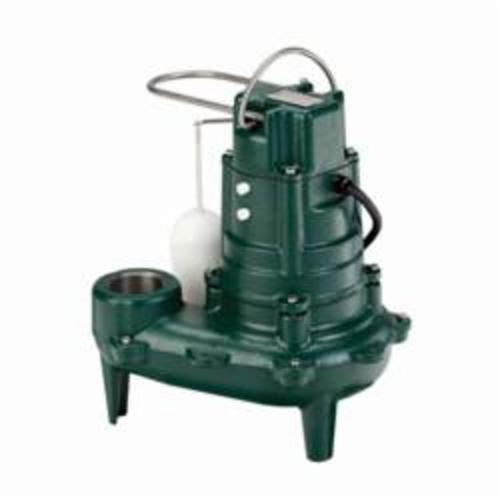

Zoeller® Submersible Pump, Series: Waste-Mate 260, 128 gpm, 2 or 3 in NPT Outlet, 21-1/2 ft Maximum Head, 1/2 hp, 115 V, 10.4 A, 60 Hz, 1750 rpm Motor, 3 Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 14-5/16 in H
- Float-operated and 2-pole mechanical switch
- Durable cast construction, ASTM Class 25 cast iron switch case and pump housing
- Non-clogging vortex impeller design, engineered plastic impeller with metal inserts (1 ph), model 267 available with cast iron impeller (standard on 3 ph models)
- Not affected by materials normally found in drainage and sewage pumps
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Neoprene square ring and gasket
- Oil-filled, hermetically-sealed motor
- Oil-lubricated bearings
- Carbon and ceramic shaft seal
- Corrosion-resistant, powder coated epoxy finish
- Completely submersible
- Watertight and dust-tight
- Automatic and non-automatic models available
- Models available packaged with piggyback variable level float switch
- Automatic reset thermal overload protection (1 Ph only)
- 12 in on point, 4 in off point
- Minimum recommended basin size (small load applications) - simplex 18 in x 30 in (45.7 x 76.2 cm), duplex 30 in x 36 in (76.2 x 91.4 cm)
- High water alarms available
- 10 in auto/15 in non auto, 3-wire neoprene cord and plug
- Cap/motor housing/pump housing cast iron, base cast iron or engineered plastic
- Upper and lower sleeve bearing
- Engineered plastic with metal insert impeller, Stainless steel hardware, AISI 1215 cold rolled steel motor shaft, Neoprene gasket
- Submersible sewage/effluent or dewatering pump
