| Acceptance Factor | : | 0.5 |
| Capacity | : | 2 gal |
| Diameter | : | 8 in |
| Diaphragm Type | : | Heavy Duty Butyl/EPDM |
| Domestic/Import | : | Domestic |
| Finish | : | Urethane Topcoat |
| Height | : | 13 in |
| Material | : | Steel |
| Pressure Rating | : | 100 psi |
| Series | : | FT |
| Temperature Rating | : | 240 deg F |
| Warranty | : | 5 Years Limited |

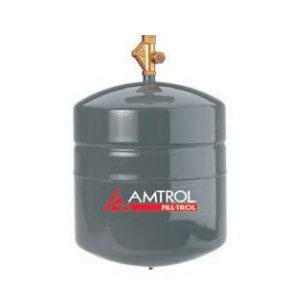

Amtrol® FILL-TROL® Boiler System Expansion Tank, Series: FT, 2 gal, 8 in Dia, 13 in Height, 100 psi, Acceptance Factor: 0.5, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel, Urethane Topcoat, Domestic
- The AMTROL FILL-TROL® system consists of a specially adapted EXTROL® pre-pressurized, diaphragm-type expansion tank, and the FILL-TROL, a specially designed, automatic, fill valve
- Accepts expanded water as system temperature rises to reduce pressure build-up
- Eliminates need for a separate, automatic fill valve
- Fully adjustable
- Helps reduce energy consumption and reduces system wear
- Automatic air vent eliminates system air
- Air purger separates air from water
- System connection sets the point of no pressure change
- Watertight reservoir for expanded water
- Sealed air cushion - factory pre-charged and 100 percent tested
- 12 psig factory pre-chargedd
- Strong, deep-drawn steel tank
- Projection-welded air stem maintains precharge setting
- Tank pressure controls system fill
- Spring-loaded check valve
- Automatic shut-off valve spring
- Removable strainer
- Cold water supply
- Expansion bypass
- Fill gate stem
- O-ring seal
- System pressure above diaphragm
- Pressure plate
- Note a standard EXTROL tank is not interchangeable with a FILL-TROL tank
- 1/2 in NPTM steel system connection
- 1.0 gal maximum acceptance volume
