| Actuator Type | : | Lever Handle |
| Ball Material | : | Chrome Plated Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 1.97 in |
| Media | : | Water |
| Nominal Size | : | 1/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 600 psig CWP |
| Series | : | 77C-100 |
| Softgoods Material | : | MPTFE Packing/Seat |
| Temperature Rating | : | 500 deg F |
| Top to Inlet Center | : | 1.76 in |
| Trim Material | : | Brass Stem |
| Warranty | : | 5 Years |

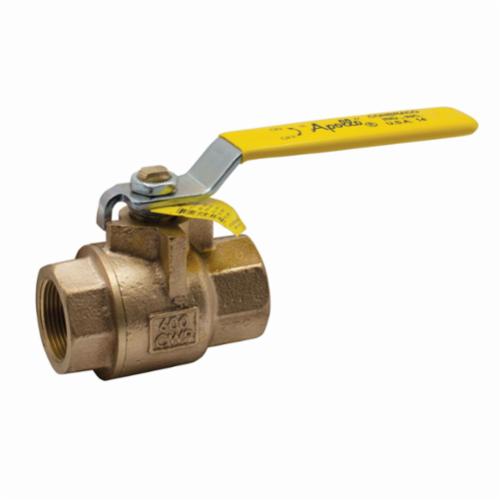

Apollo™ 2-Piece Ball Valve, Series: 77C-100, 1/4 in Nominal, FNPT, 600 psig CWP Pressure Rating, 500 deg F Temperature, Full Port, Media: Water, Lever Handle Actuator, Chrome Plated Brass Ball, 1.97 in Inlet to Outlet Length, 1.76 in Top to Inlet Center, Bronze Body, Brass Stem Trim, Softgoods Material: MPTFE Packing/Seat, Domestic
