| Body Material | : | Brass |
| End Style | : | MNPT x FNPT |
| Media | : | MNPT x FNPT End Style |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | FVMX |
| Softgoods Material | : | EPDM Diaphragm |
| Temperature Rating | : | 210 deg F |
| Type | : | High Capacity |
| Warranty | : | 2 Years Limited |

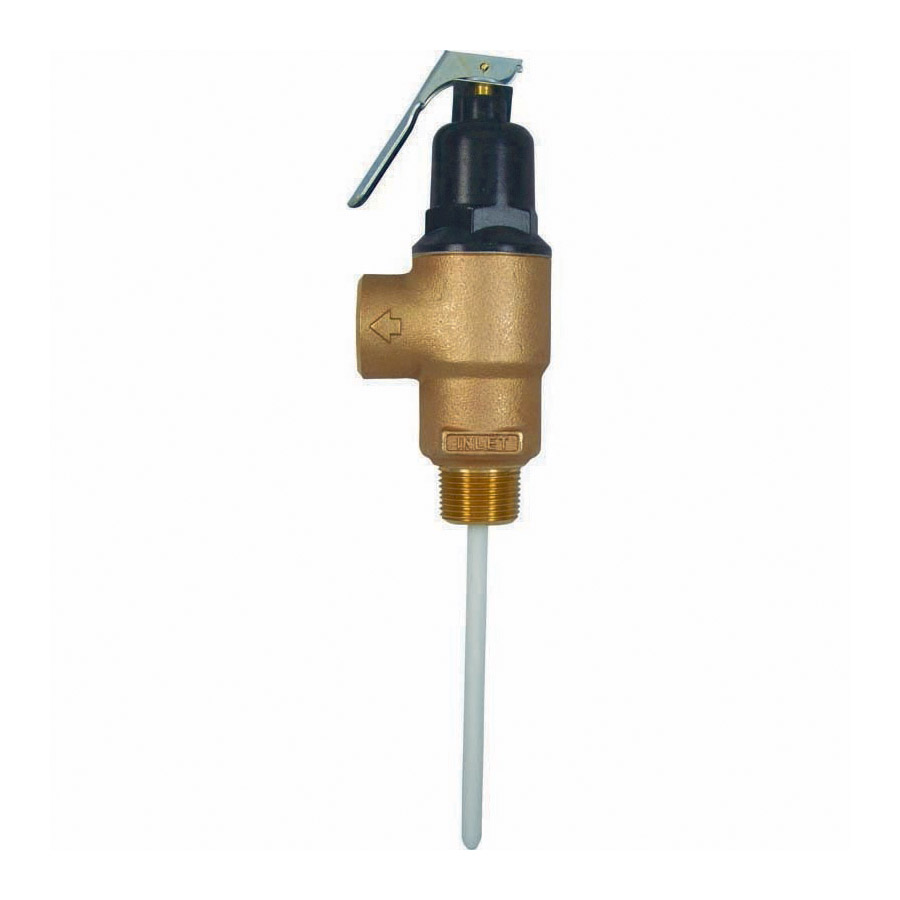

Cash Acme® Combination Temperature/Pressure Relief Valve, High Capacity, Series: FVMX, 3/4 in Nominal, MNPT x FNPT, 150 psi Pressure Rating, 210 deg F Temperature, Media: Water, Brass Body, Softgoods Material: EPDM Diaphragm
- Offers high capacity protection for domestic and commercial hot water heating devices - handles more volume with just one relief valve
- Completely automatic - the valves reseat after either temperature or pressure relief
- The larger series valves are well suited for commercial applications - restaurants, hospitals, and laundries are no problem
- Silicone seat disc
- Stainless steel pressure spring
