| Color | : | Yellow |
| Density | : | 0.7 to 0.825 g/cu-cm |
| Length | : | 260 in |
| Material | : | PTFE |
| Pressure Rating | : | 4347 psi |
| Temperature Rating | : | -450 to 500 deg F |
| Thickness | : | 0.004 in |
| Type | : | 3-Wrap |
| Width | : | 3/4 in |

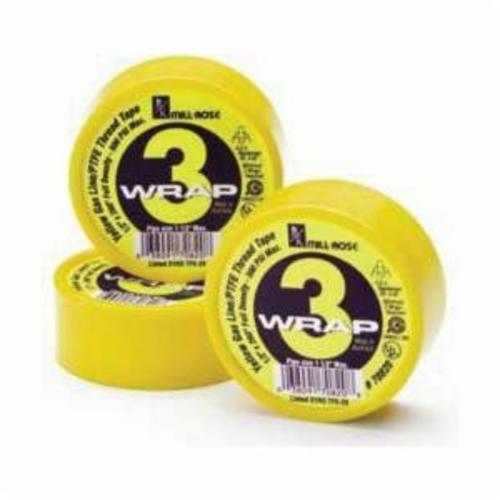

Mill-Rose 3-Wrap Yellow Gas Seal Tape is a PTFE thread sealing tape designed specifically for gas lines. This is a full or maximum-density thread sealing tape. Mill-Rose 3-wrap yellow gas seal tape is approved by relevant authorities and used by the gas industry world-wide. It's color-coded yellow so fitters and inspectors can easily recognize it as an approved tape.
Cleanfit Thread Seal Tape, 3-Wrap, 260 in Length, 3/4 in Width, 0.004 in Thickness, 0.7 to 0.825 g/cu-cm, -450 to 500 deg F, 4347 psi, PTFE, Yellow
- 99 percent PTFE < 1 percent pigment composition
- > 100 percent elongation
- 10 to 17 N/sq-mm tensile strength
- Certified to comply with the provisions of A-A58092 (ASG), UL listed 31RO, Australian gas Association (AGA) 3226
- Pressure rating: in tests conducted by an independent laboratory Mill-Rose 3-wrap yellow gas seal tape was found to seal fittings carrying natural gas at pressures up to 4347 psi or 30000 kPa when applied as per instructions
- Note: pressure ratings are relative to the quality and torque of the fittings and the amount of tape used
- -400 to 500 deg F PTFE is completely stable up to 500 deg F
