Delta® R4707

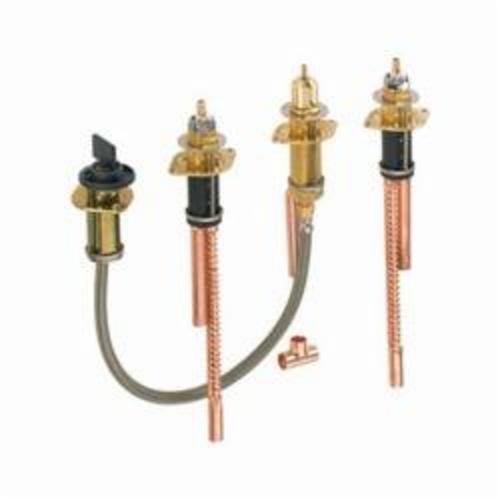

DELTA® R4707 Adjustable Rough-In Valve, Domestic

Manufacturer: Delta Faucet Company
Brand: Delta®
Part #: 24112
MPN: R4707
UPC: 034449490306
CPN:
Min. Order Qty: 1
Qty Order Interval: 1
Domestic/Import      :      Domestic
Inlet Connection      :      1/2 in
Material      :      Brass
Mounting Type      :      Deck/Ledge
Outlet Connection      :      1/2 in
Suitable For Use With      :      2-Handle Widespread Roman Tub Faucet
Type      :      Adjustable
Valve Type      :      Washerless Stem Cartridge
Warranty      :      Limited Lifetime

DELTA® Rough-In Valve, Adjustable, Washerless Stem Cartridge, 1/2 in Inlet Connection, 1/2 in Outlet, Deck/Ledge Mount, Brass, For Use With: 2-Handle Widespread Roman Tub Faucet, Domestic

  • Includes hand-shower rough in for easier installation
  • Easy installation also allows for above-deck adjustability
  • Flexible mounting arrangement allows design flexibility
  • Four hole installation
  • 5/8 in O.D. copper supply inlet/outlet tubes-R4707 outlet tubes are corrugated copper
  • Widespread with 16 in (406 mm) maximum without using additional tubing
  • Flexible deck or ledge mount installation
  • Solid fabricated brass end valves and spout body
  • Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180 deg rotation, with replaceable non-metallic seats operating in stainless steel lined socket
  • Hot and cold stems are interchangeable
  • Temperature and volume controlled with handles
  • All operating parts shall be replaceable from the top
  • Data/Spec Sheet-1 https://7600cgpb-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R4707_Data_Sheet.pdf
  • Instruction/Installation Sheet https://7600cgpb-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R4707_Installation_Instruction.pdf
  • Parts List https://7600cgpb-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_R4707_Part_List.pdf
