| Clearance | : | 8 in Ceiling |
| Control Type | : | Manual |
| Dimensions | : | 14 in H x 16 in W x 10 in D |
| Electrical Rating | : | 120 V |
| Includes | : | MHX3C Manual Control Humidistat |
| Nominal Capacity | : | 18 gpd |
| Operating Temperature | : | 120 deg F |
| Plenum Opening | : | 15 in W x 9-1/2 in H |
| Series | : | Legacy 1137 |
| Type | : | Flow Through |
| Warranty | : | 5 Years |

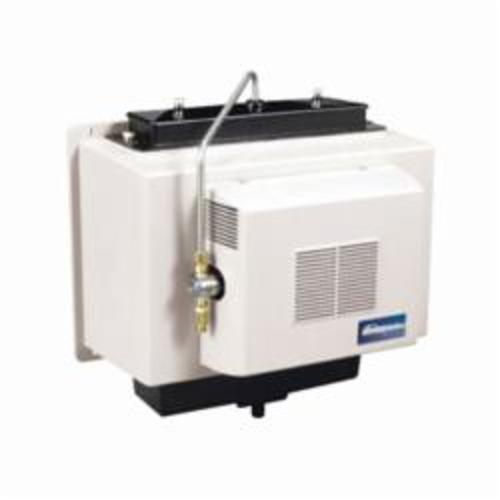

GeneralAire® Humidifier, Flow Through, Series: Legacy 1137, 18 gpd Nominal Capacity, 120 V, 15 in W x 9-1/2 in H Plenum Opening, 8 in Ceiling Clearance, Manual Control, 120 deg F Operating, 14 in H x 16 in W x 10 in D
- Replacement VaporPad®: 990-13 (GFI No 7002)
- Fan powered unit mounts easily on the warm air plenum and delivers 18 gpd
- The MHX3C manual control wall or duct mount humidistat gives you the ability to control your humidity comfort level
- A portion of the heated air from the furnace passes through a water soaked vapor pad where it absorbs additional moisture and then returns for distribution throughout your home
- Water is metered into a patented KineticFlo™ through and uniformly dispersed across the vapor pad
- Unevaporated water drains from the bottom of the unit to eliminate mineral build up
- Water evaporation via furnace heat and fan
- Saddle and solenoid valve
- For home sizes up to 3000 sq-ft
