| Color | : | Arctic White |
| Control Range | : | 40 to 90 deg F |
| Dimensions | : | 4-5/8 in H x 4-15/16 in W x 1-1/8 in D |
| Display | : | 10 sq-in |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto-On-Circ |
| Programs per Week | : | 7 |
| Series | : | 8000 |
| Stages Cool | : | R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 Terminal Designations |
| Stages Heat | : | 3 |
| System Switching | : | Heat/Off/Cool/Auto |
| Terminal Designations | : | R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 |
| Voltage Rating | : | 18 to 30 VAC |
| Warranty | : | Limited |

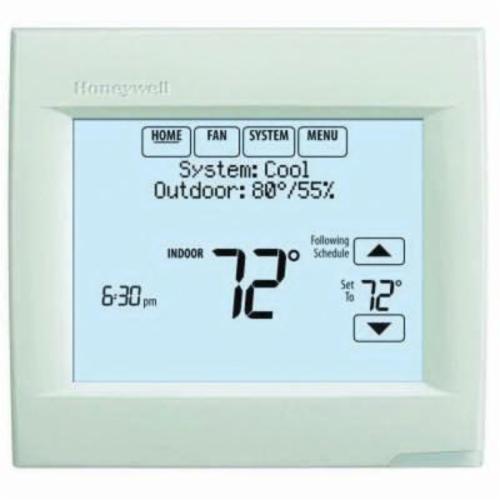

Honeywell VisionPRO® Programmable Thermostat, Series: 8000, 40 to 90 deg F Control Range, 3 Stages Heat, 2 Stages Cool, Programs Per Week: 7, Terminal Designations: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1, System Switching: Heat/Off/Cool/Auto, Fan Switching: Auto-On-Circ, 10 sq-in Display, 18 to 30 VAC, Arctic White, 4-5/8 in H x 4-15/16 in W x 1-1/8 in D, Import
- Thermostat works stand-alone or with the THM5421R1021 equipment interface module or with the TrueZONE® wireless adapter
- Smart schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK™ wireless communications
- Increase profit per job by including RedLINK™ accessories that provide comfort and convenience, RedLINK™ accessories include the RedLINK™ internet Gateway, portable comfort control (PCC), wireless outdoor sensor wireless indoor sensor wireless entry/exit remote, wireless Vent and filter Boost remote, TrueSTEAM™ humidifier with wireless adapter and TrueZONE® zoning panel with wireless adapter
- Selectable for residential and light commercial applications, meets commercial code and is title 24 compliant
- Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day
- Plain language set up no manual needed
- Alerts and user interactions log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error, saves time in troubleshooting and points the technician in the right direction
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- MicroSD port for copying the installer set up customizable reminders, custom events and holidays to multiple thermostats
- MicroSD port for adding the dealer's contact information on the screen
- 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating or cooling
- 3 assignable outputs on the equipment interface module to control humidification, dehumidification, ventilation or a stage of heating or cooling
- 1 assignable input can be used with a wired outdoor, indoor or discharge sensor
- 4 assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- Dual powered - battery or hardwired (C wire)
- Precise temperature control (+/-1 deg F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
- 40 to 90 deg F heating/50 to 99 deg F cooling control
