| Amperage Rating | : | 2.2 FLA |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | Drip Proof |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Series | : | 100 |

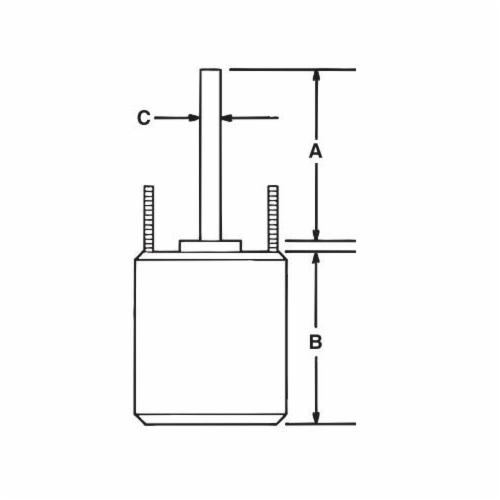

| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Type | : | PSC |
| Voltage Rating | : | 208/230 VAC |

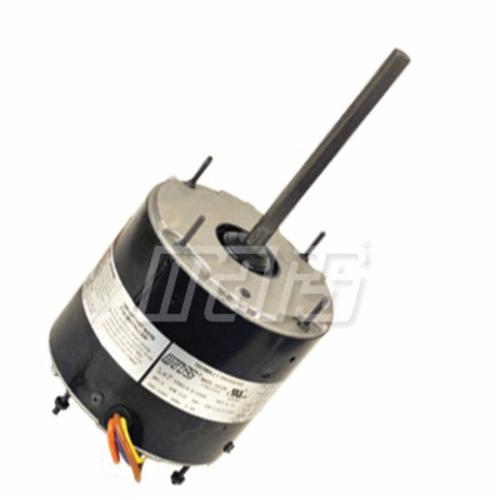

MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Mars® Azure® Condenser Fan Motor, PSC, Series: 100, 208/230 VAC, 2.2 FLA, 60 Hz, 1/4 hp, 1 ph, 825 rpm, 1 Speed, Drip Proof, NEMA 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible, Sleeve Bearing, All Angle Mount, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia
- 26 and 36 in leads
- Rheem mounting holes with screws installed
- Water slinger on shaft
- Thru bolt or band mounting
- Double full flatted shaft
- 5/370 capacitor rating
- Thermal overload protected
- Fan duty, continuous air over
- Totally enclosed non-ventilated
