| Actuator Type | : | Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| End Style | : | Push-Fit x Slip |
| Inlet to Outlet Length | : | 4-1/2 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Softgoods Material | : | EPDM O-Ring |
| Temperature Rating | : | 200 deg F |
| Trim Material | : | Push-Fit x Slip End Style |
| Warranty | : | 2 Years Limited |

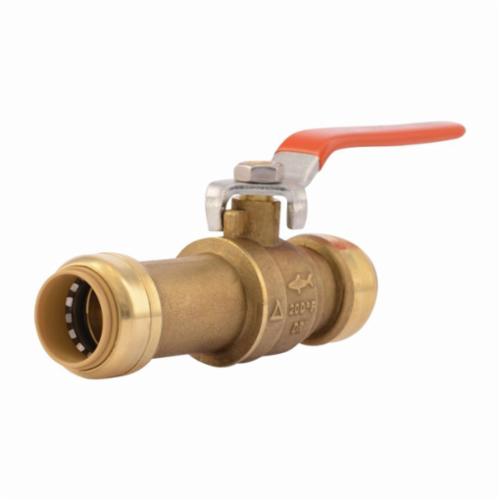

Sharkbite® Ball Valve, 3/4 in Nominal, Push-Fit x Slip, 200 psi Pressure Rating, 200 deg F Temperature, Full Port, Media: Water, Lever Handle Actuator, Brass Ball, 4-1/2 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Softgoods Material: EPDM O-Ring
- Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
- Convenient single lever control - makes them easy to use and encourages shut-off of water supply
- Full port ball valve - allows water to flow freely through the valve
- Utilizes a slip feature for easy installation- install quickly on existing copper and CTS CVPC pipe
- For use with rigid copper or CPVC pipe
- DZR lead free brass body and ball
- PTFE seat ring/packing
