| Dimensions | : | 2.75 in W x 1.8 in D x 4.6 in H |
| Finish | : | White |
| Specifications | : | 14 to 140 deg F |
| Suitable For Use With | : | Duct Smoke Detector |
Duct smoke detector accessories add functionality to the duct smoke detection system by allowing quick, convenient inspections at eye level and effective audible and visible notify cation options. All System Sensor duct smoke detectors and accessories are UL listed.

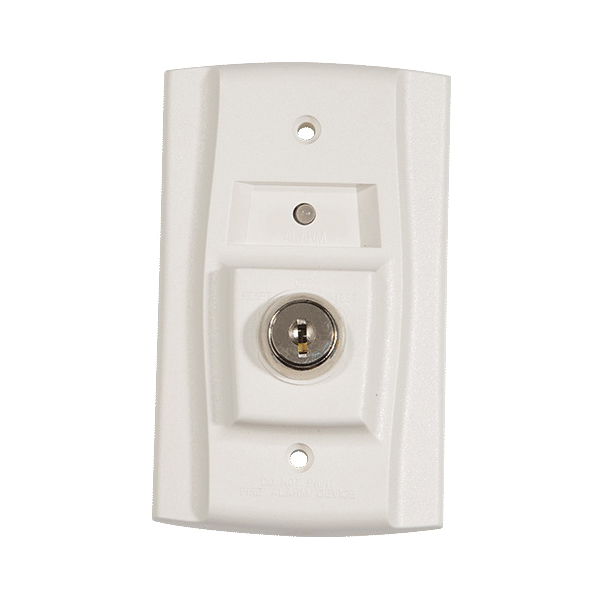

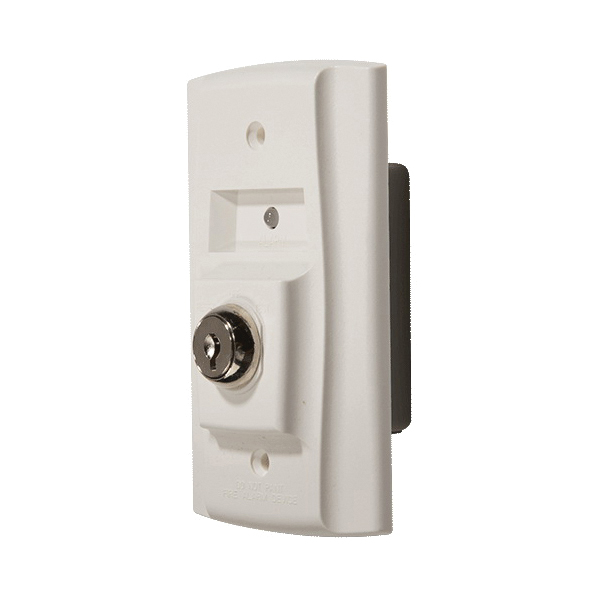

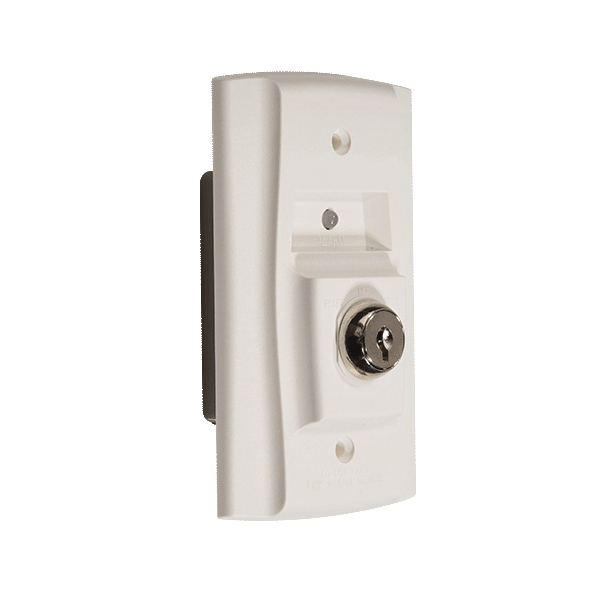

System Sensor® Remote Test Station, For Use With: Duct Smoke Detector, 14 to 140 deg F, White, 2.75 in W x 1.8 in D x 4.6 in H
- 40 sec max alarm response time
- 95% non-condensing humidity
- 14 to 35 VDC, 12 mA max power LED (green)
- 2.8 to 32 VDC, 12 mA max alarm LED (red)
- Total current: 105 mA max
- 14 to 18 AWG
