| Amperage Rating | : | 0.45 A |
| Depth | : | 1-1/2 in |
| Domestic/Import | : | Import |
| Electrical Connection | : | Natural Gas/Liquid Propane Gas Type |
| Gas Type | : | Natural Gas/Liquid Propane |
| Height | : | 4 in |
| Igniter Warm-Up Time | : | 7 sec |
| Includes | : | Flash Code Diagnostics |
| Material | : | Silicone Carbide |
| Mounting Type | : | Surface |
| Type | : | Universal |
| Voltage Rating | : | 25 VAC |
| Width | : | 30 in |

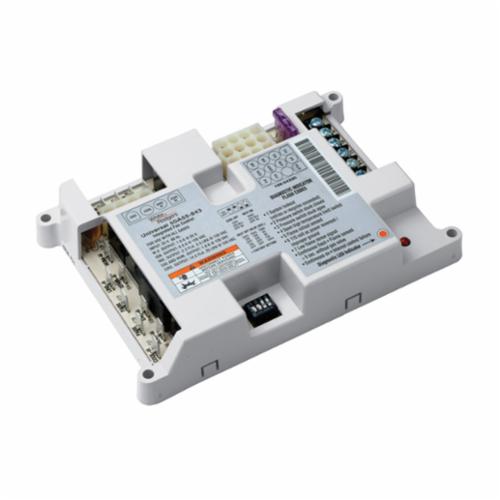

White-Rodgers™ Integrated Ignition Control, Universal, 25 VAC, 0.45 A, 1/4 in Quick Connect, Natural Gas/Liquid Propane, 7 sec Igniter Warm-Up Time, Surface Mount, 30 in Width, 1-1/2 in Depth, 4 in Height, Silicone Carbide, Import
- Replaces 50A50 and 50A55 controls consult integrated silicon carbide module
- Fused to protect low voltage system transformers
- Includes mounting hole template
- Adjustable blower relay
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- -40 to 175 deg F operating
- 5 to 93 percent relative humidity
